Inductive Sensor

NI30U-EM30WD-VP6X-H1141

Order ID no. 100000618

Protection class: IP68
Switching element function: Complementary contact
Output function: PNP
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Mounting conditions: Non-flush
Operating voltage: DC
Rated switching distance (mm): 30
Construction size: M30 x 1.5
Special features: uprox+, Wash down, Sn +, Factor 1, Resistant to magnetic fields, Pressure resistant

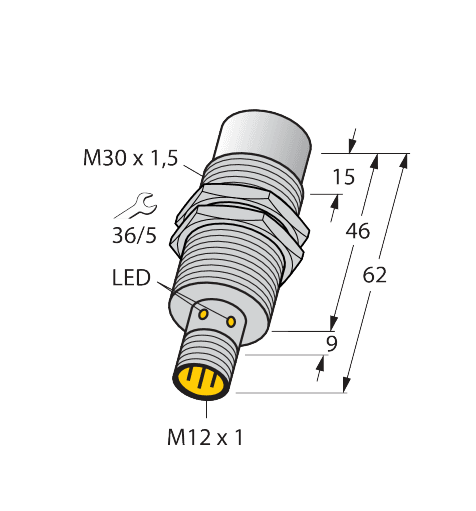

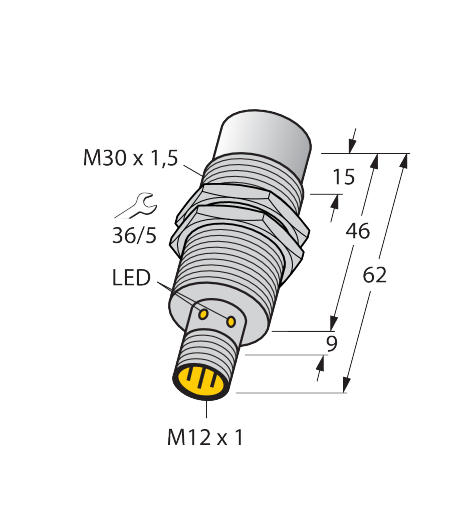

Dimensions: 30 mm x 62 mm
Quality active face: LCP
Switching frequency (kHz): 1
