Inductive Sensor

BI4U-EM12EWD-VP6X 12M

Order ID no. 100000771

Protection class: IP68
Switching element function: Complementary contact
Output function: PNP
Cable length (m): 12
Cable color: Gray
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 4

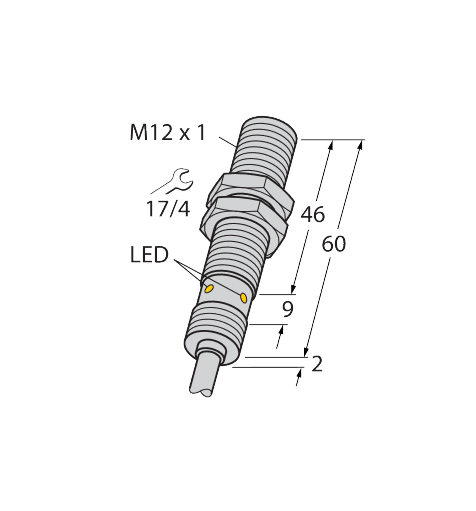

Construction size: M12 x 1
Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Dimensions: 12 mm x 64 mm
Quality active face: LCP
Switching frequency (kHz): 3
