Inductive Sensor

BI8U-EM18MWD-VN6X 7M

Order ID no. 100003681

Item Total€115.70

Quantity

Protection class: IP68
Switching element function: Complementary contact
Output function: NPN
Cable length (m): 7
Cable color: Gray
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 8
Construction size: M18 x 1
Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant

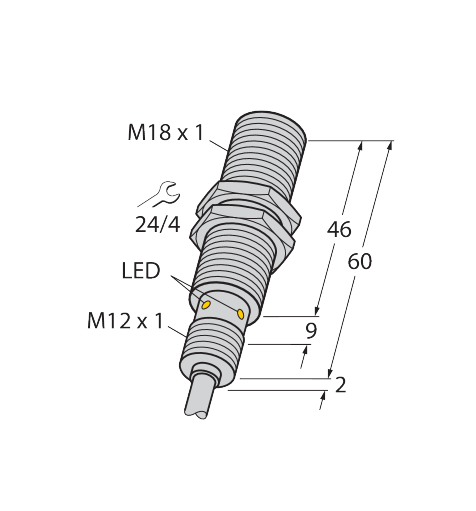

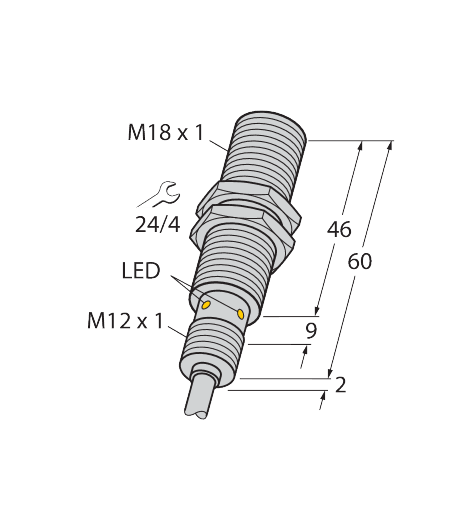

Dimensions: 18 mm x 62 mm
Quality active face: LCP
Switching frequency (kHz): 1.5
