NI30-Q130WD-ADZ30X2-B1131 | TURCK - Your Global Automation Partner
Inductive Sensor
NI30-Q130WD-ADZ30X2-B1131
Order ID no. 100003890
home
Home
Loading...
Technical Data
Downloads
Special features
Wash down
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Electrical connection
Connector
Connector type
7/8″
Design
Rectangular

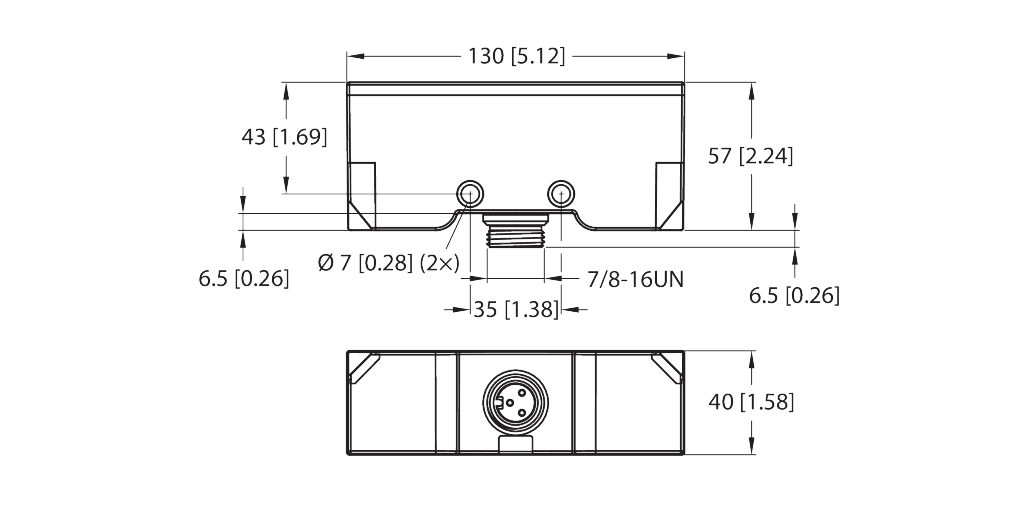

Dimensions (L x W x H)
130 mm x 57 mm x 40 mm
Housing material
Plastic
Housing quality
PPS-GF30
Mounting conditions
Non-flush
Operating voltage
AC/DC
Output function
2-wire
Protection class
IP68, IP69K
Quality active face
PPS-GF30
Rated switching distance (mm)
30
Switching element function
NO contact
Switching frequency (kHz)
0.02
Key Features
Electrical connection
Connector
home
Turck-Shop
Products
Sensors
Inductive Sensors
NI30-Q130WD-ADZ30X2-B1131
Mounting conditions
Non-flush
Output function
2-wire
Rated switching distance (mm)
30
