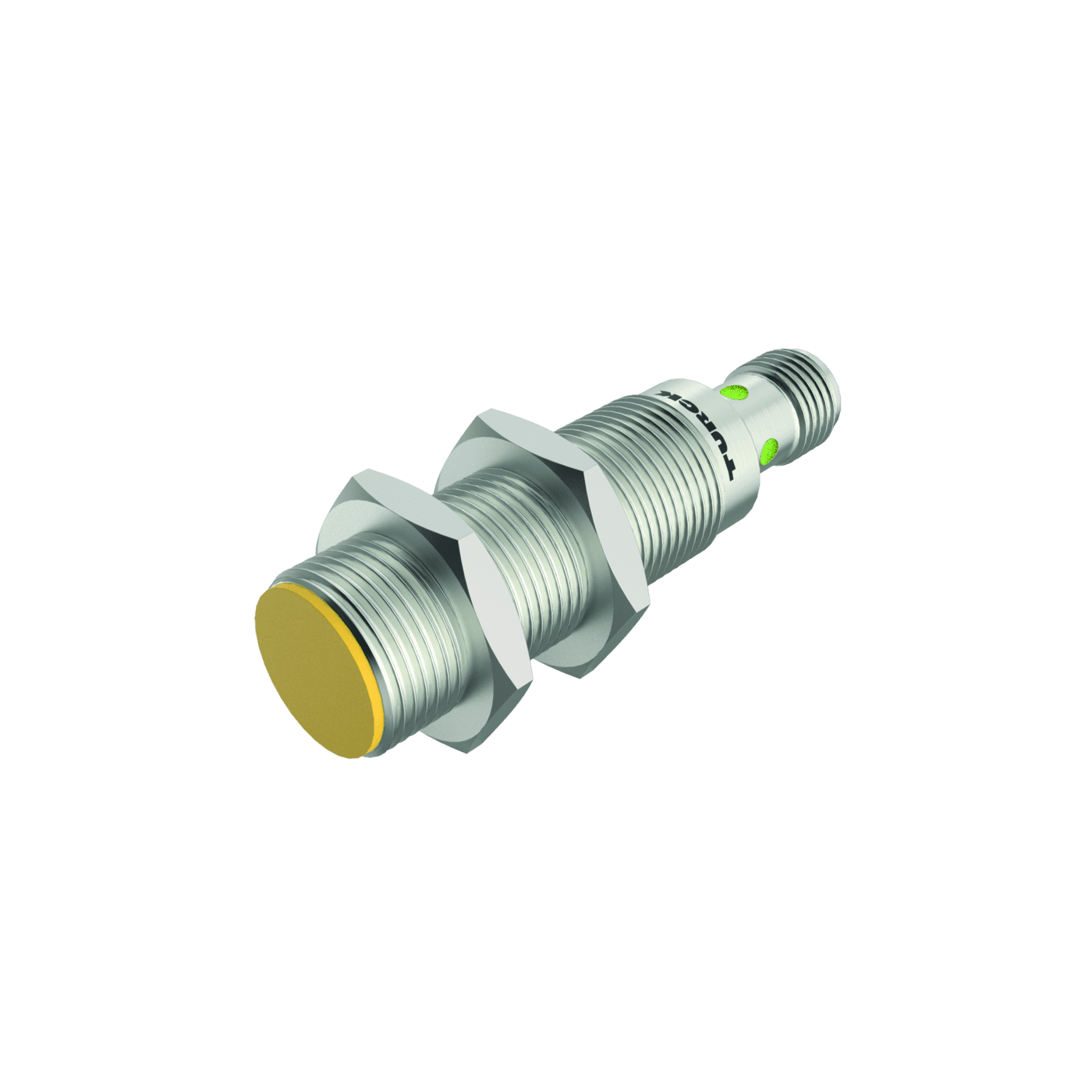

Inductive Safety Sensor
BI8-M18-2APS8X2-H1141
Order ID no. 100016607
In Stock
Price Group
E1
List Price
€112.50
Item Total
€112.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
2 x OSSD, NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Function
Inductive safety switch
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
8
Cascadable
No
Coding level/tamper protection
Uncoded

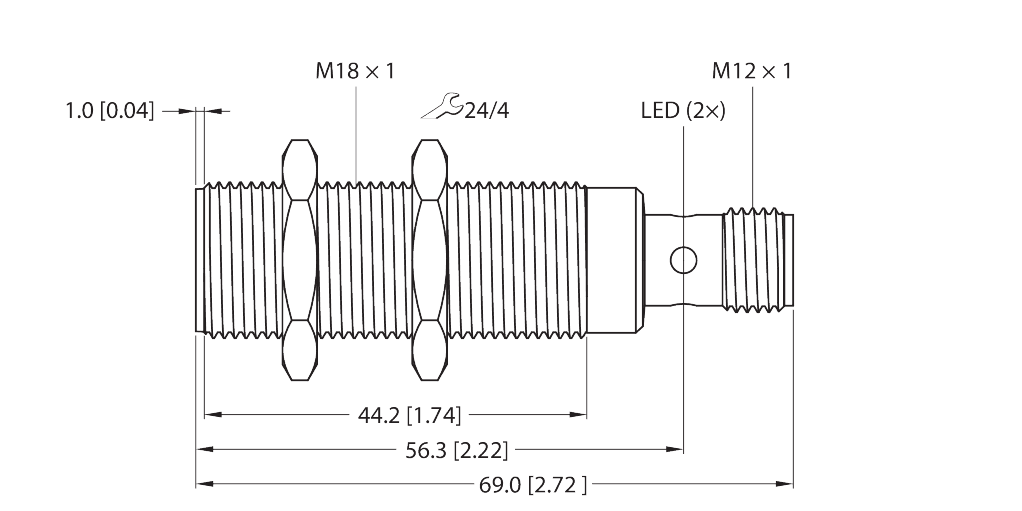

Dimensions
18 mm x 69 mm
Quality active face
PA
PL acc. to EN ISO 13849-1
Level d
SIL acc. to IEC 61508
2
Category acc. to ISO 13849-1:2008
2
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
8
