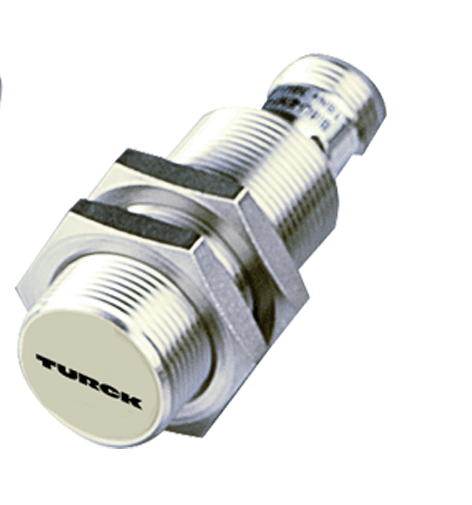

Inductive Sensor For the food industry

BI20U-EM30WD-AP6X-H1141

Order ID no. 100052777

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Connector
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 20
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: NO contact
Switching frequency (kHz): 0.75
