Inductive Sensor

NI5-G13-Y1

Order ID no. 10057

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 2

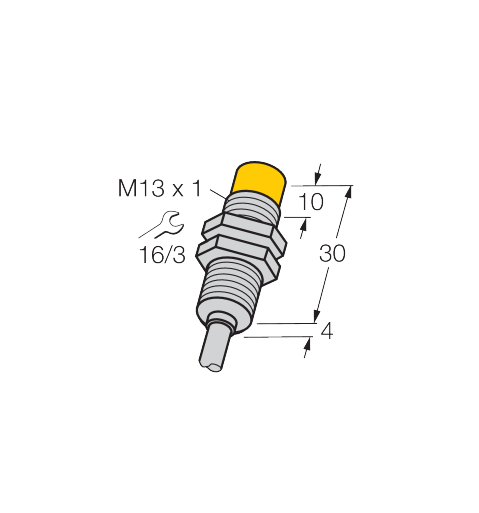

Design: Threaded barrel
Electrical connection: Cable
Housing material: Metal
Housing quality: CuZn
Mounting conditions: Non-flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 5
Switching frequency (kHz): 2
