BI30R-Q20-AP6X2-H1141 | TURCK - Your Global Automation Partner

Inductive Sensor

BI30R-Q20-AP6X2-H1141

Order ID no. 1407500

homeHome
Loading...

Protection class: IP65
Switching element function: NO contact
Output function: PNP
Design: Ring sensor
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PBT-GF30-V0
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Inside ring diameter D (mm): 30.1
Operating voltage: DC
Special features: Ring sensor, static output

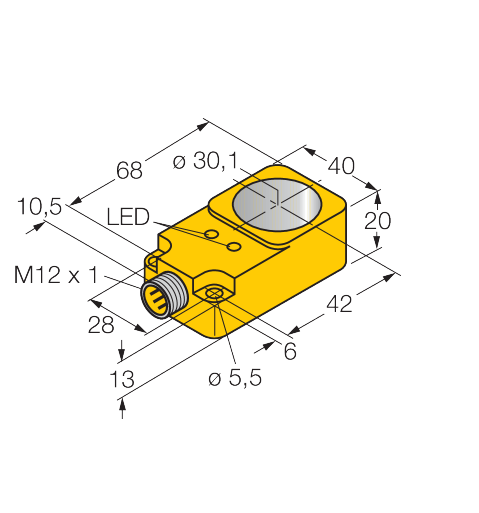

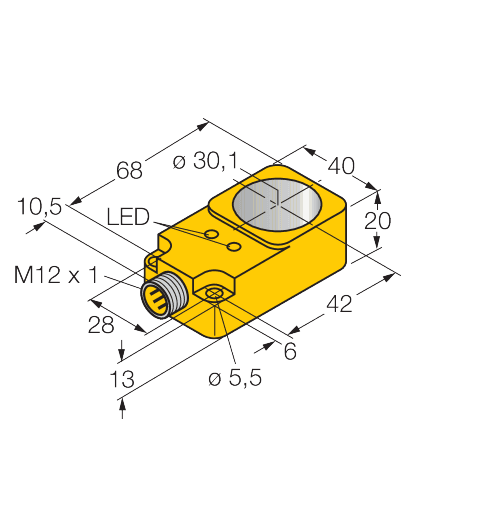

Dimensions: 68 mm x 40 mm x 20 mm
Switching frequency (kHz): 0.008

Key Features

Electrical connection: Connector
Output function: PNP

In Stock
Price Group	E1
List Price	€151.00
