Inductive Sensor Ring sensor
NI100R-S32XL-VP44X-H1141
Order ID no. 1510301
In Stock
Price Group
E1
List Price
776,00 €
home
Turck-Shop
Products
Sensors
Inductive Sensors
NI100R-S32XL-VP44X-H1141
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Connector type
M12 x 1
Design
Ring sensor

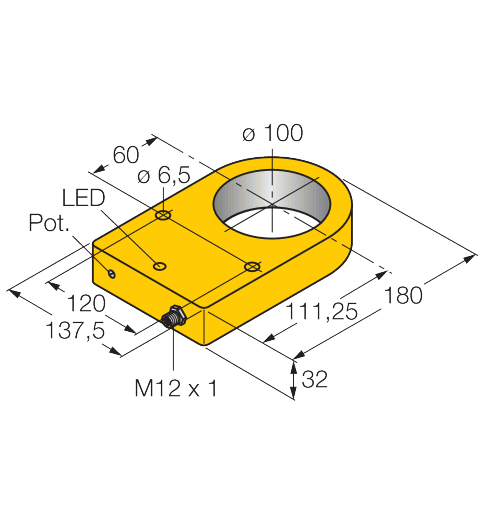

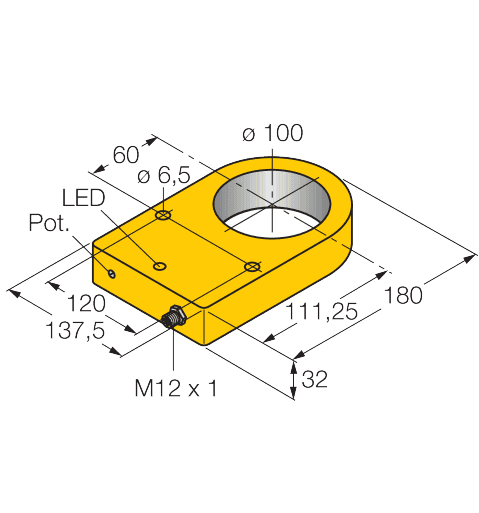

Dimensions (L x W x H)
180 mm x 137,5 mm x 32 mm
Electrical connection
Connector
Housing material
Plastic
Housing quality
POM
Inside ring diameter D (mm)
100
Operating voltage
DC
Output function
PNP
Protection class
IP67
Special features
Ring sensor, static output
Switching element function
Complementary contact
Switching frequency (kHz)
0.008
Key Features
Electrical connection
Connector
Inside ring diameter D (mm)
100
Output function
PNP
