BI20-Q20-AP45X2LD-H1141 | TURCK - Your Global Automation Partner

Inductive Sensor For Use in Vehicle Electrical Systems

BI20-Q20-AP45X2LD-H1141

Order ID no. 1584040

homeHome
Loading...

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Approvals: E1 type approval
Connector type: M12 x 1
Design: Rectangular

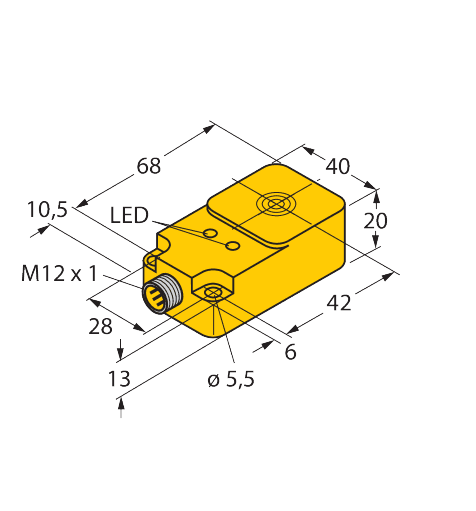

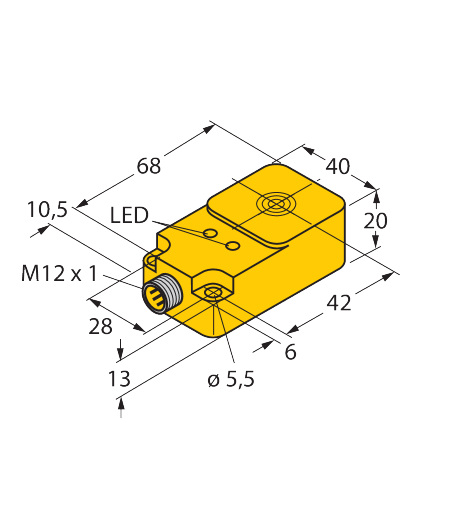

Dimensions (L x W x H): 68 mm x 40 mm x 20 mm
Electrical connection: Connector
Housing material: Plastic
Housing quality: PBT-GF30-V0
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: PBT-GF30-V0
Rated switching distance (mm): 20
Special features: Commercial vehicle specification, Sn +
Switching element function: NO contact
Switching frequency (kHz): 0.5

Key Features

Electrical connection: Connector
Mounting conditions: Flush
Output function: PNP
Rated switching distance (mm): 20

In Stock
Price Group	E1
List Price	76,60 €
