Inductive Angle Sensor
RI360P1-DSU35-2UP6X4-H1151
Order ID no. 1590867
In Stock
Price Group
G1
List Price
€259.80
Item Total
€259.80
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Encoders
RI360P1-DSU35-2UP6X4-H1151
Technical Data
Downloads
Ambient temperature max. (°C)
75
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
M12 × 1
Design
Dual sensor for rotary actuators

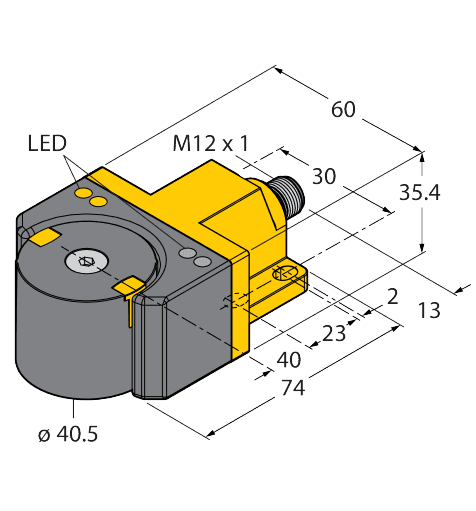

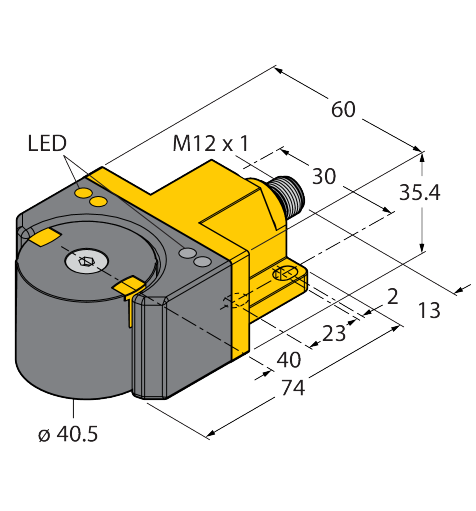

Dimensions (L x W x H)
74 mm x 60 mm x 35,4 mm
Encoder line
Premium-Line
Technology
Contactless
Housing material
Plastic
Housing quality
PP-GF30
Mounting conditions
Non-flush
Operating voltage
DC
Output function
2 × PNP
Output type
Absolute singleturn
Measuring principle
Inductive
Protection class
IP68, IP69K
Resolution
0.09°
Flange type
Flange without mounting element
Switching element function
NO/NC
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
2 × PNP
