NI5U-Q10S-AP6X | TURCK - Your Global Automation Partner
Inductive Sensor
NI5U-Q10S-AP6X
Order ID no. 1609364
home
Home
Loading...
Technical Data
Downloads
Protection class
IP68
Switching element function
NO contact
Output function
PNP
Cable length (m)
2
Cable color
Gray
Design
Rectangular
Electrical connection
Cable
Housing material
Plastic
Housing quality
PP-GF20
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
5
Construction size
27.8 x 16 x 10.2 mm
Special features
uprox+, Factor 1, Resistant to magnetic fields

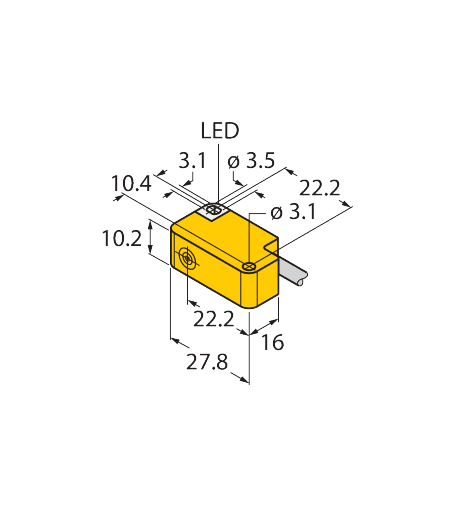

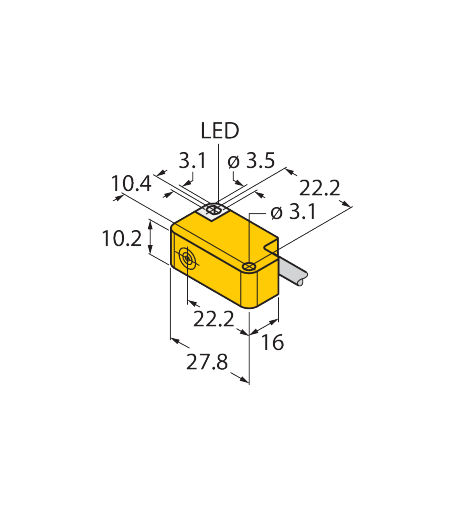

Dimensions
27,8 mm x 16 mm x 10,2 mm
Quality active face
PP-GF20
Switching frequency (kHz)
1
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
5
In Stock
Price Group
E2
List Price
€56.50
Item Total
€56.50
Quantity
−
+
