BI1-EH03-AP6X

BI1-EH03-AP6X

Thumbnail for BI1-EH03-AP6X

Thumbnail for BI1-EH03-AP6X

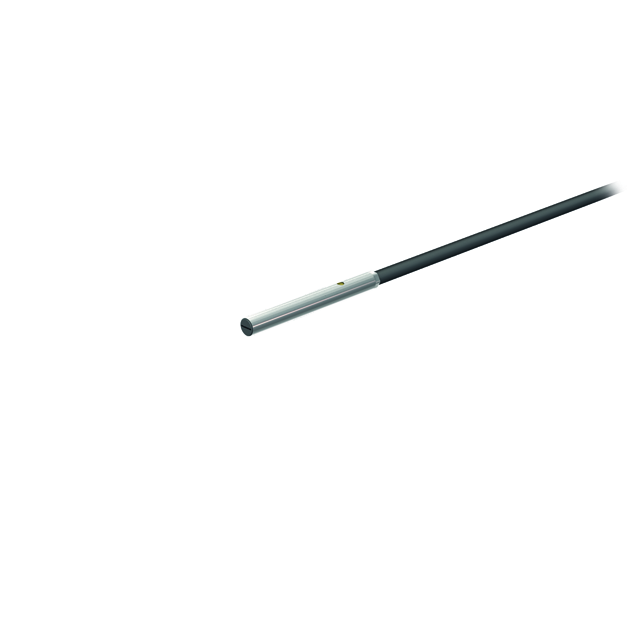

Inductive Sensor

BI1-EH03-AP6X

Order ID no. 1619325

In Stock
Price Group	E1
List Price	€104.40

Item Total€104.40

Quantity

Contact Support

homeHome
Loading...

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Cable length (m): 2
Design: Smooth barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 1
Construction size: Ø 3 mm

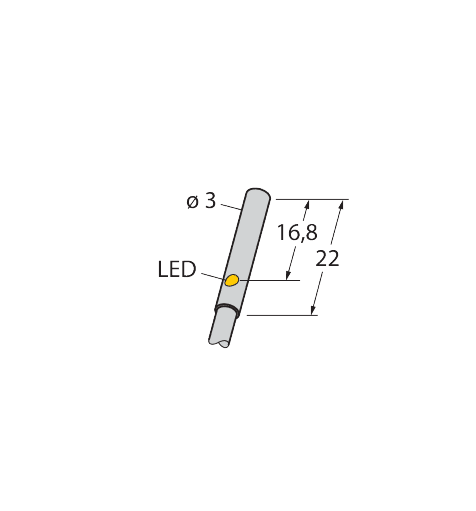

Dimensions: 3 mm x 22 mm
Quality active face: Polyester
Switching frequency (kHz): 3

Key Features

Electrical connection: Cable
Mounting conditions: Flush
Output function: PNP
Rated switching distance (mm): 1
