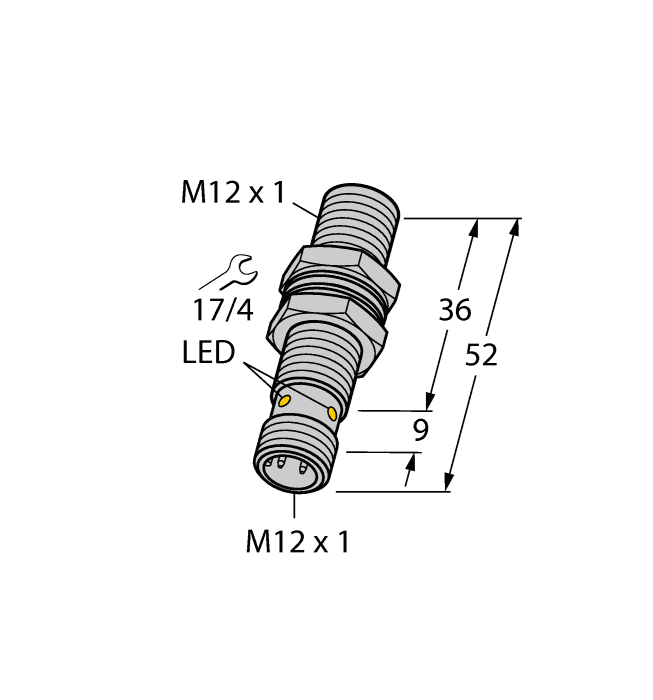

Inductive Sensor

BI3U-MT12H-AN6X-H1141

Order ID no. 1634213

Item Total€81.20

Quantity

Protection class: IP68
Switching element function: NO contact
Output function: NPN
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 3
Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Dimensions: 12 mm x 52 mm
Quality active face: Duroplast
Switching frequency (kHz): 3
