Inductive Sensor
BI3U-EG12SK-AP6X
Order ID no. 1634400
In Stock
Price Group
E1
List Price
€75.60
Item Total
€75.60
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Inductive Sensors
BI3U-EG12SK-AP6X
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Stainless steel
Housing quality
1.4301 (AISI 304)
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
3
Construction size
M12 x 1
Special features
uprox+, Factor 1, Resistant to magnetic fields

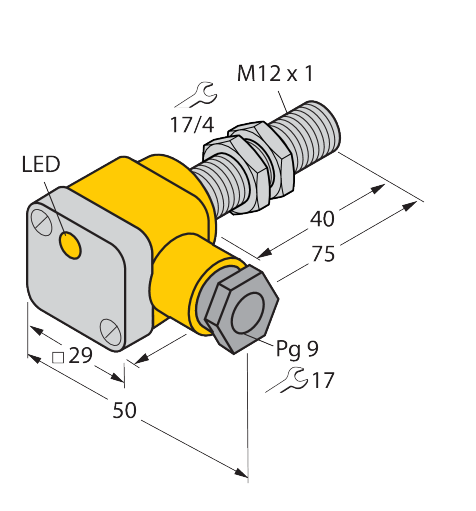

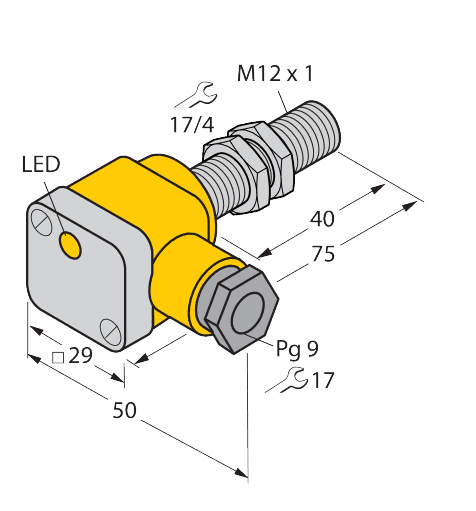

Dimensions
12 mm x 75 mm
Quality active face
PBT
Switching frequency (kHz)
3
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
3
