Inductive Sensor
BI3U-P12SK-AP6X
Order ID no. 1634700
In Stock
Price Group
E1
List Price
€67.40
Item Total
€67.40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Inductive Sensors
BI3U-P12SK-AP6X
Technical Data
Downloads
Protection class
IP68
Switching element function
NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Plastic
Housing quality
PA6-GK15
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
85
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
3
Construction size
M12 x 1
Special features
uprox+, Factor 1, Resistant to magnetic fields

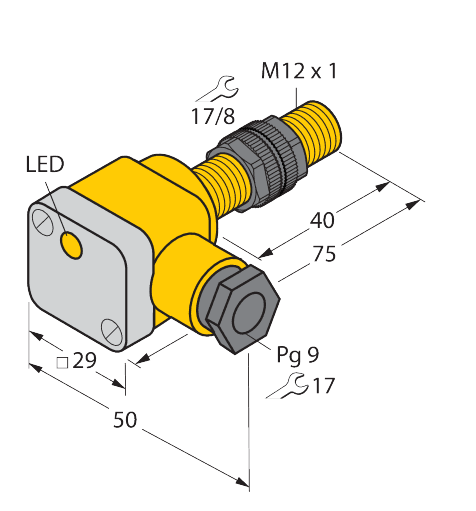

Dimensions
12 mm x 75 mm
Quality active face
PA12-GF30
Switching frequency (kHz)
3
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
3
