Inductive Sensor

NI15U-EM18WD-AN6X

Order ID no. 1634836

Protection class: IP68
Switching element function: NO contact
Output function: NPN
Cable length (m): 2
Cable color: White
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 100
Mounting conditions: Non-flush
Operating voltage: DC
Rated switching distance (mm): 15

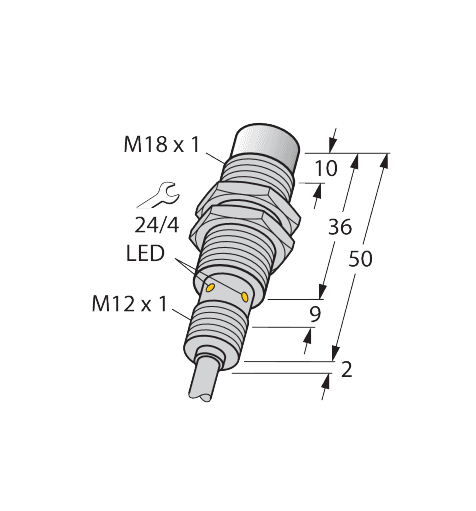

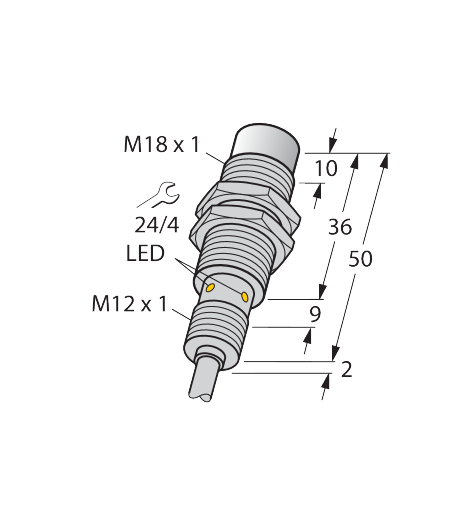

Construction size: M18 x 1
Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Dimensions: 18 mm x 52 mm
Quality active face: LCP
Switching frequency (kHz): 1
