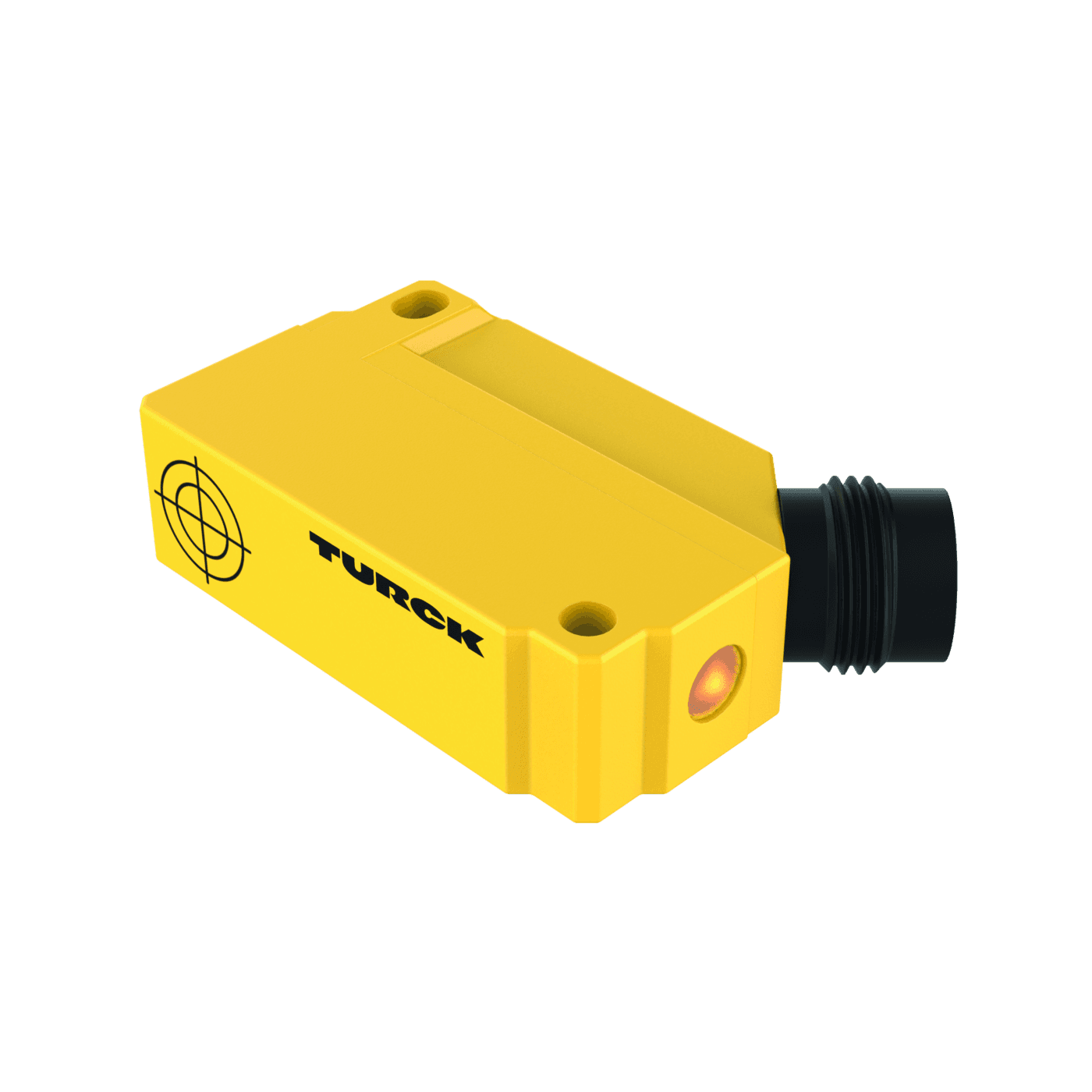

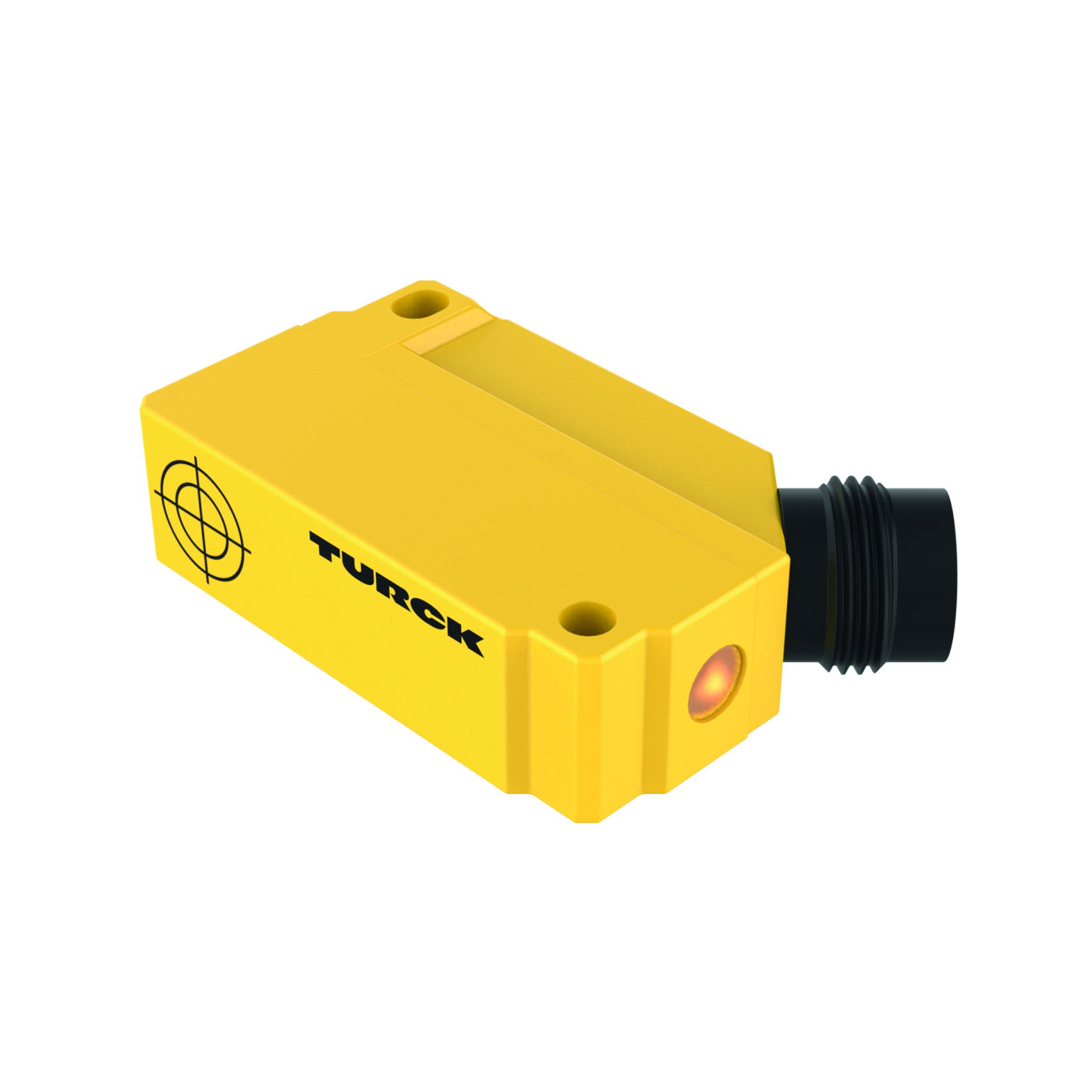

Inductive Sensor
BI5U-Q12-AN6X2-H1141
Order ID no. 1635527
In Stock
Price Group
E2
List Price
€74.10
Item Total
€74.10
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP68
Switching element function
NO contact
Output function
NPN
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PA12-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
5
Construction size
40 x 26 x 12 mm
Special features
uprox+, Factor 1, Resistant to magnetic fields

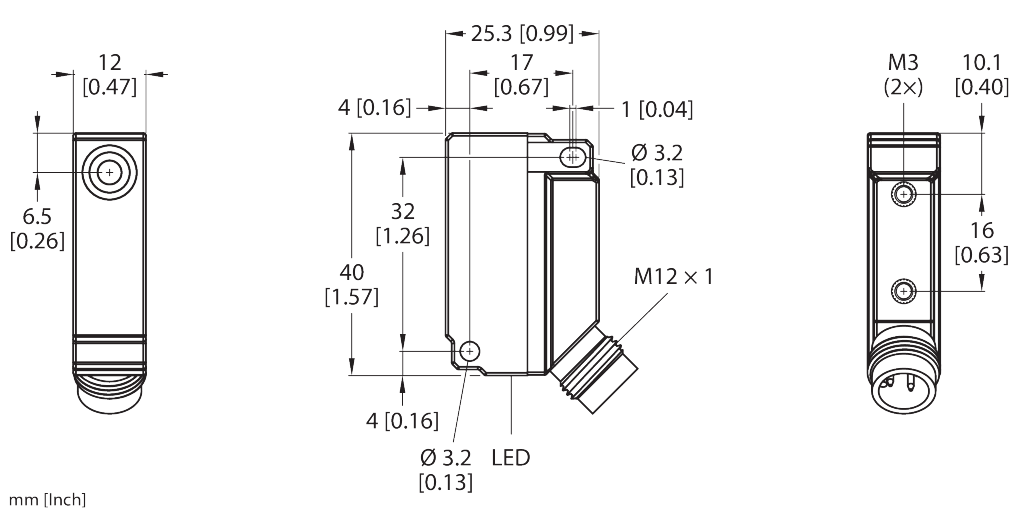

Dimensions
40 mm x 26 mm x 12 mm
Quality active face
PA12-GF30
Switching frequency (kHz)
1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
5
