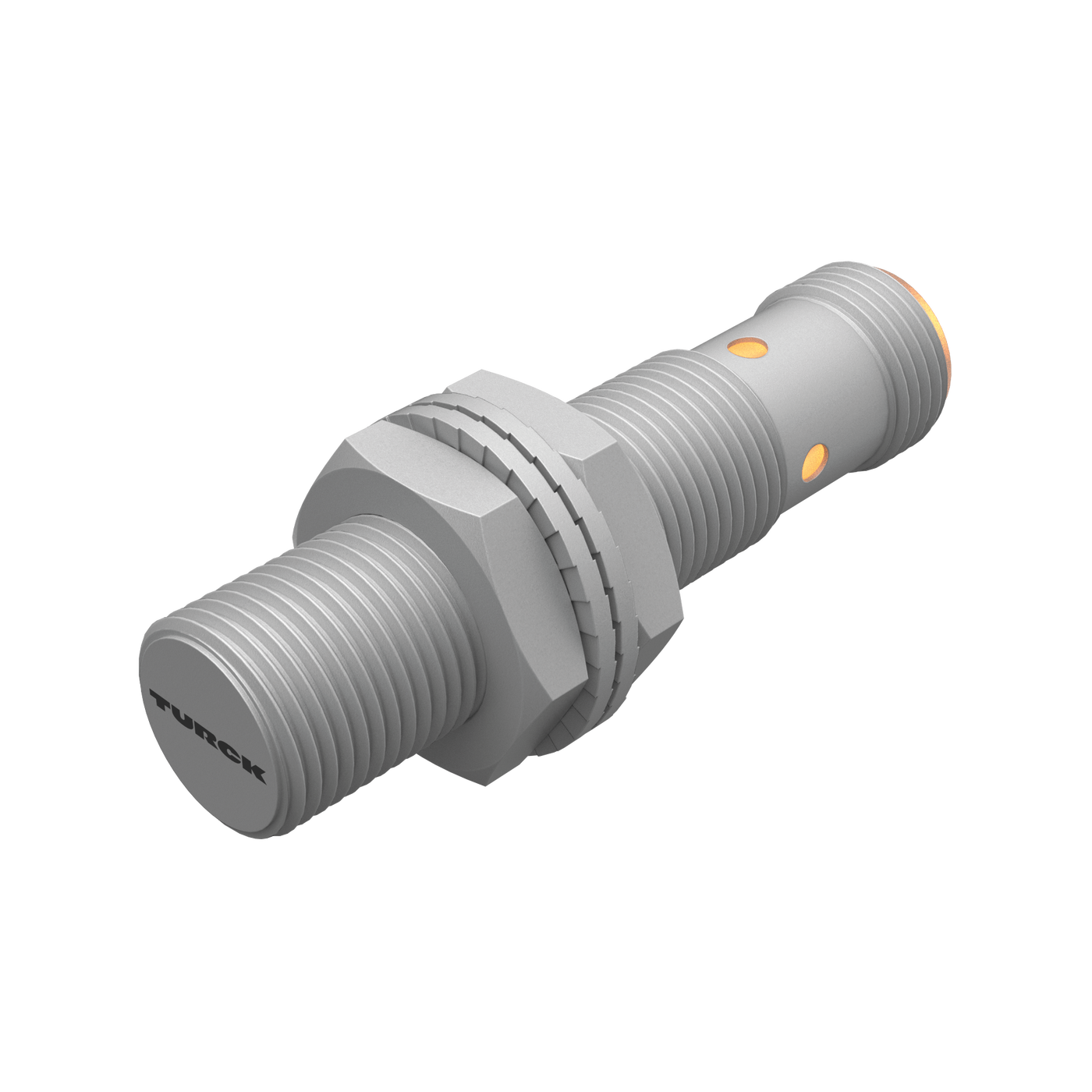

Inductive Sensor

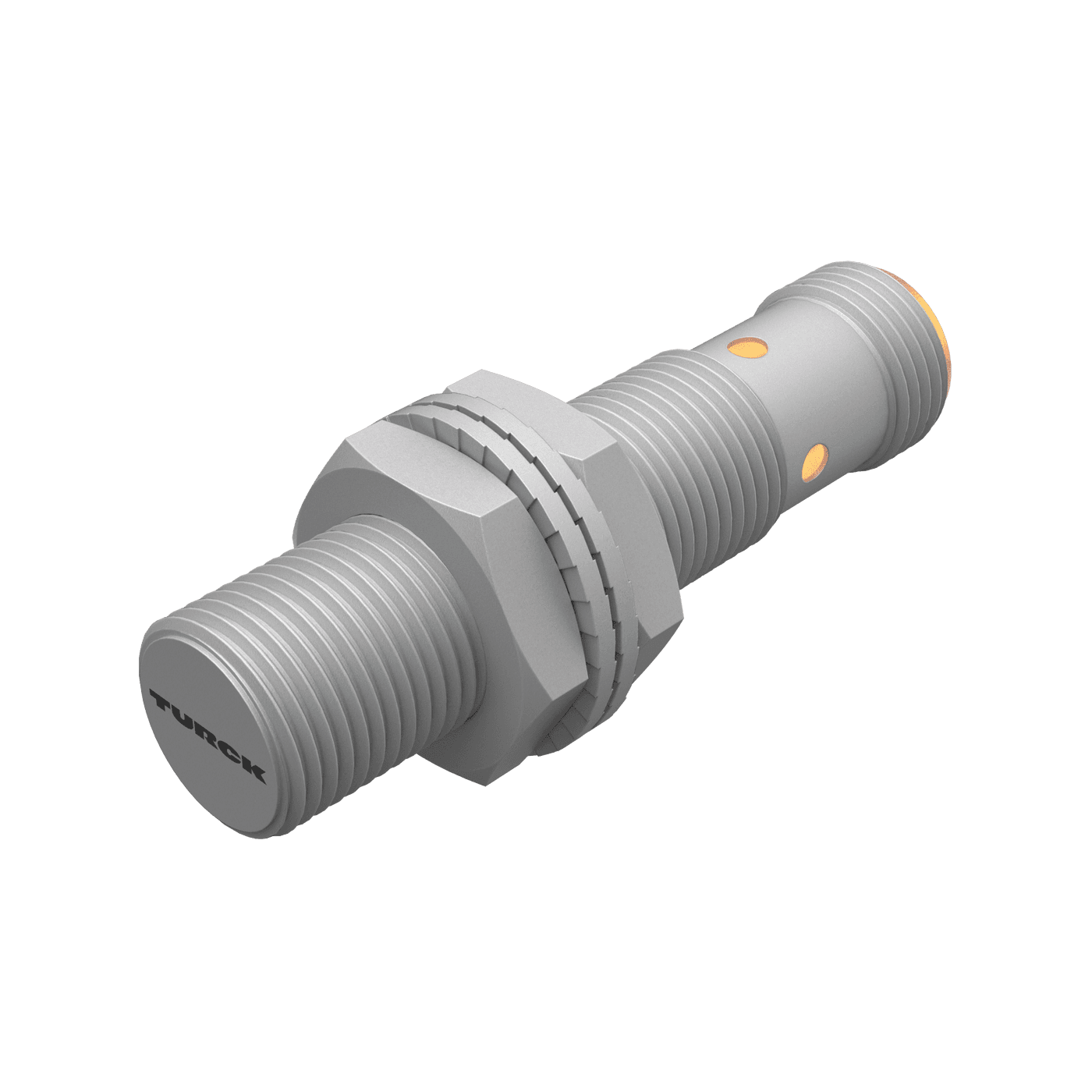

BI6U-MT12-VN6X-H1141

Order ID no. 1644825

Protection class: IP68
Switching element function: Complementary contact
Output function: NPN
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 6
Special features: uprox3, Resistant to magnetic fields, Factor 1, PTFE-coated
Dimensions: 12 mm x 52 mm
Quality active face: LCP
Switching frequency (kHz): 2
