Inductive Sensor

NI20U-MT30-AN6X-H1141

Order ID no. 1646250

Item Total€97.00

Quantity

Protection class: IP68
Switching element function: NO contact
Output function: NPN
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: CuZn
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Non-flush
Operating voltage: DC
Rated switching distance (mm): 20
Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated

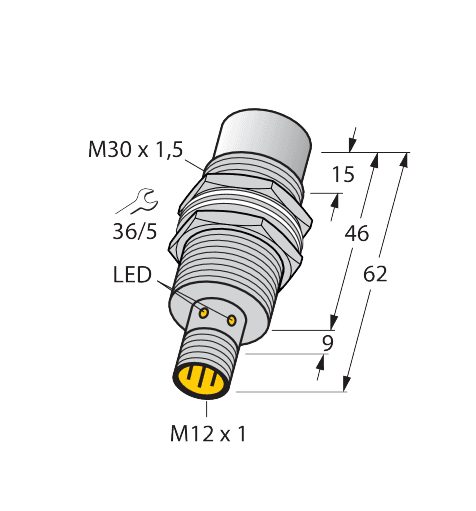

Dimensions: 62 mm x
Quality active face: PBT
Switching frequency (kHz): 1
