Inductive Sensor
BID1.5-G120KK-AP6-H1141
Order ID no. 1682001
In Stock
Price Group
E1
List Price
€196.80
Item Total
€196.80
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Inductive Sensors
BID1.5-G120KK-AP6-H1141
Technical Data
Downloads
Protection class
IP68
Switching element function
NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
80
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
1.5
Construction size
M12 x 1
Special features
Pressure resistant

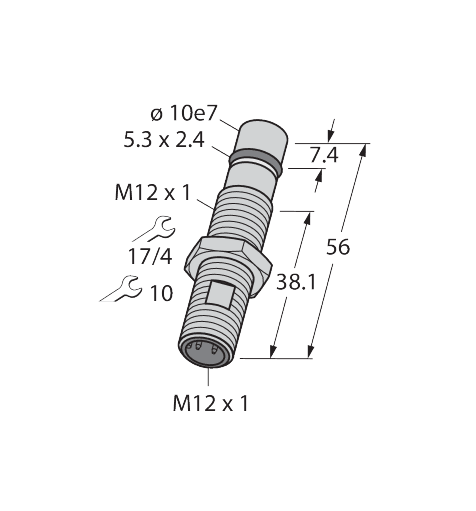

Dimensions
12 mm x 56 mm
Quality active face
ZrO<sub>2</sub>
Switching frequency (kHz)
0.6
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
1.5
