Inductive Sensor

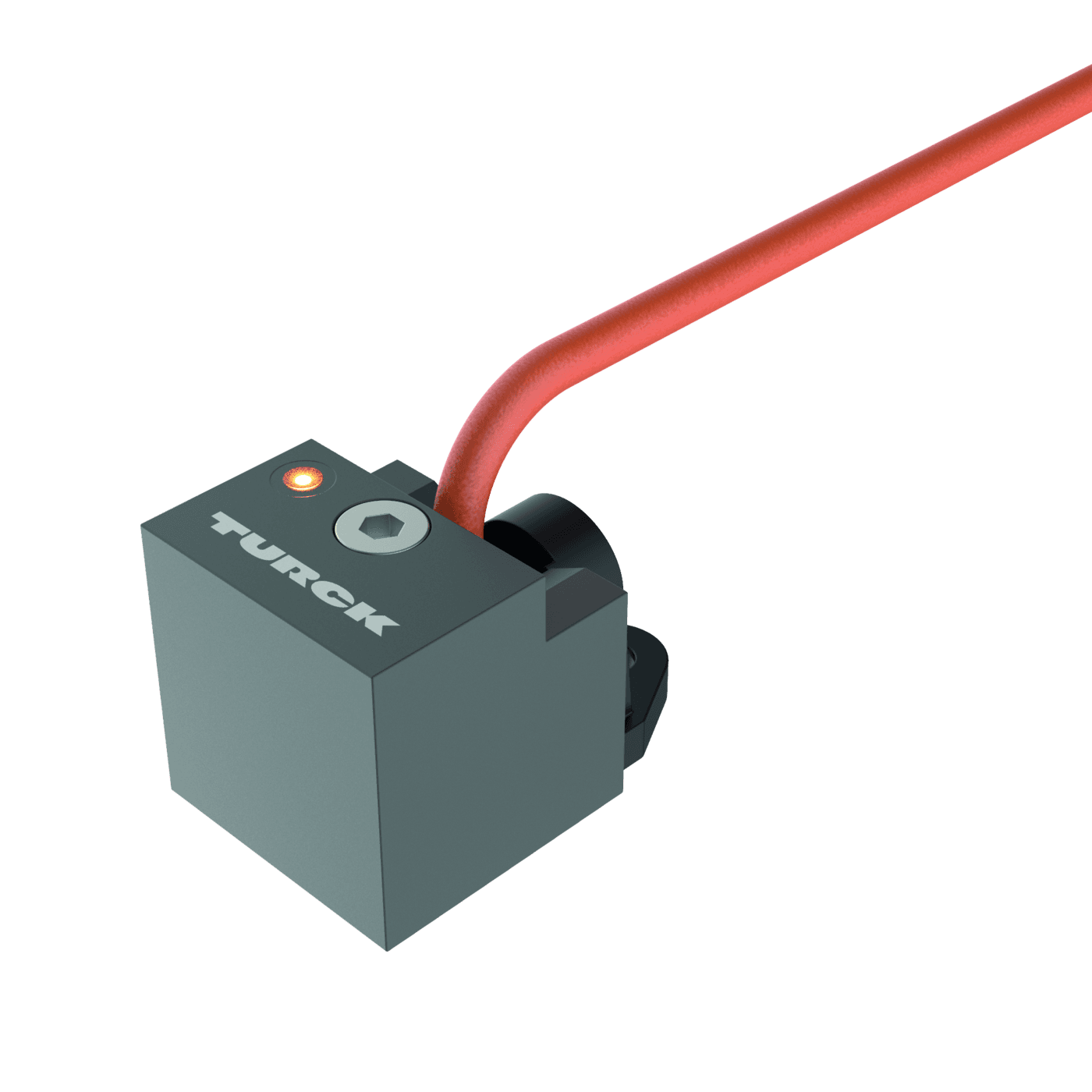

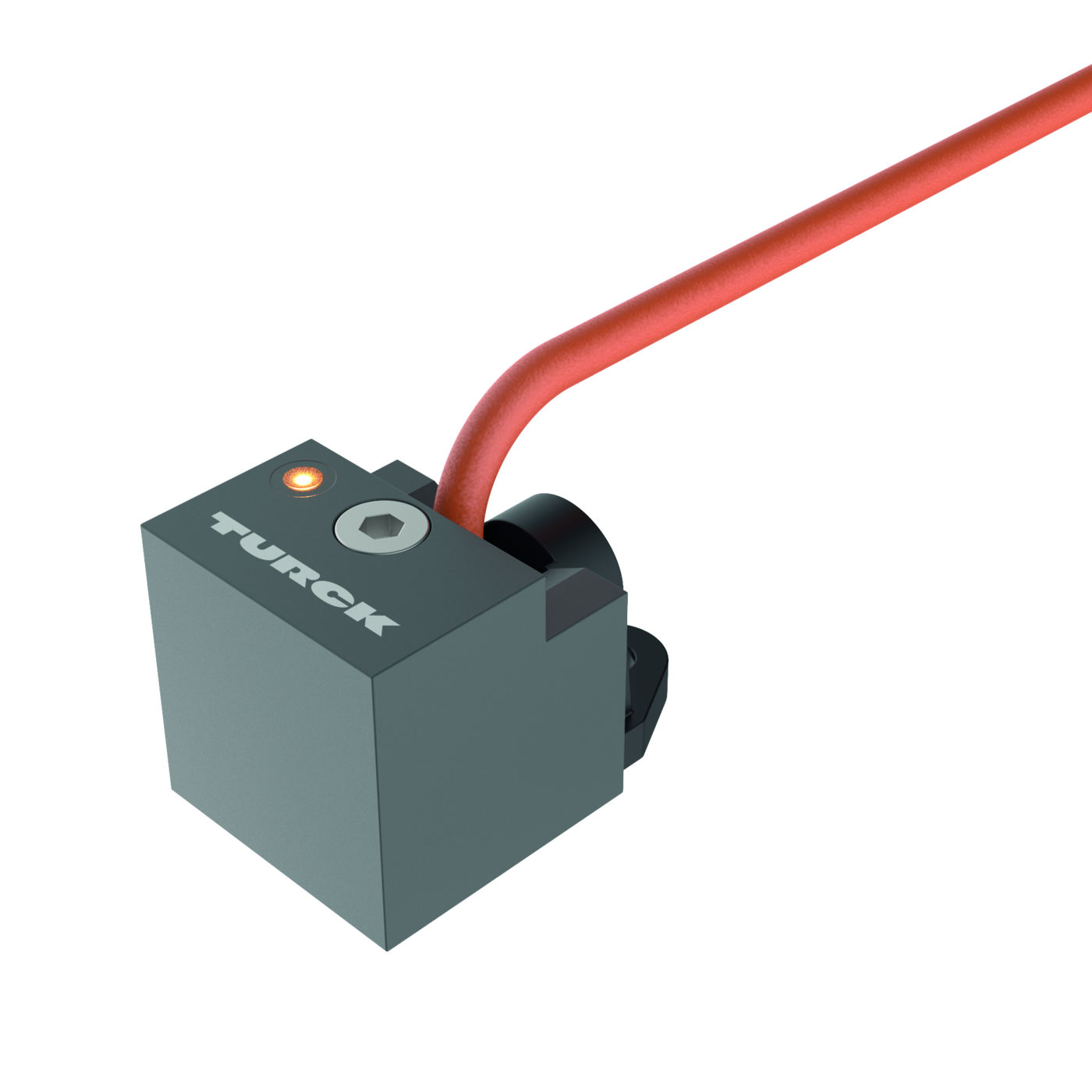

BI10-QN26-AD4X-0.15XOR-RS4.23/S100-S1589
Order ID no. 4470228
In Stock
Price Group
E1
List Price
€167.00
Item Total
€167.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Special features
weldguard®
Ambient temperature max. (°C)
100
Ambient temperature min. (°C)
-25
Cable color
Orange
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 x 1
Design
Rectangular

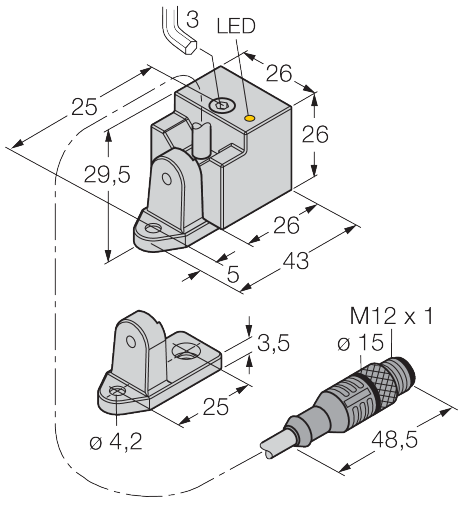

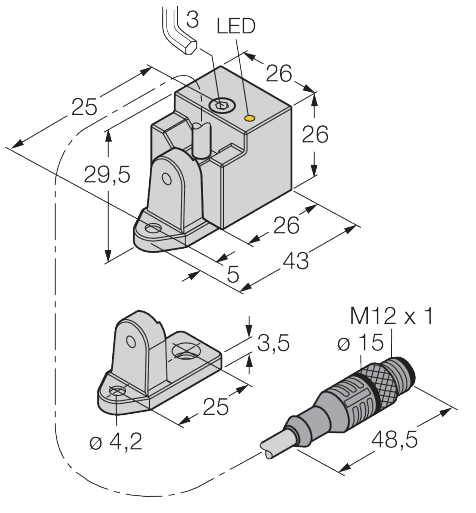

Dimensions (L x W x H)
43 mm x 26 mm x 26 mm
Housing material
Plastic
Housing quality
PBT-GF30-V0
Mounting conditions
Flush
Operating voltage
DC
Output function
2-wire
Protection class
IP67
Rated switching distance (mm)
10
Switching element function
NO contact
Switching frequency (kHz)
0.5
Key Features
Electrical connection
Cable with connector
Mounting conditions
Flush
Output function
2-wire
Rated switching distance (mm)
10
