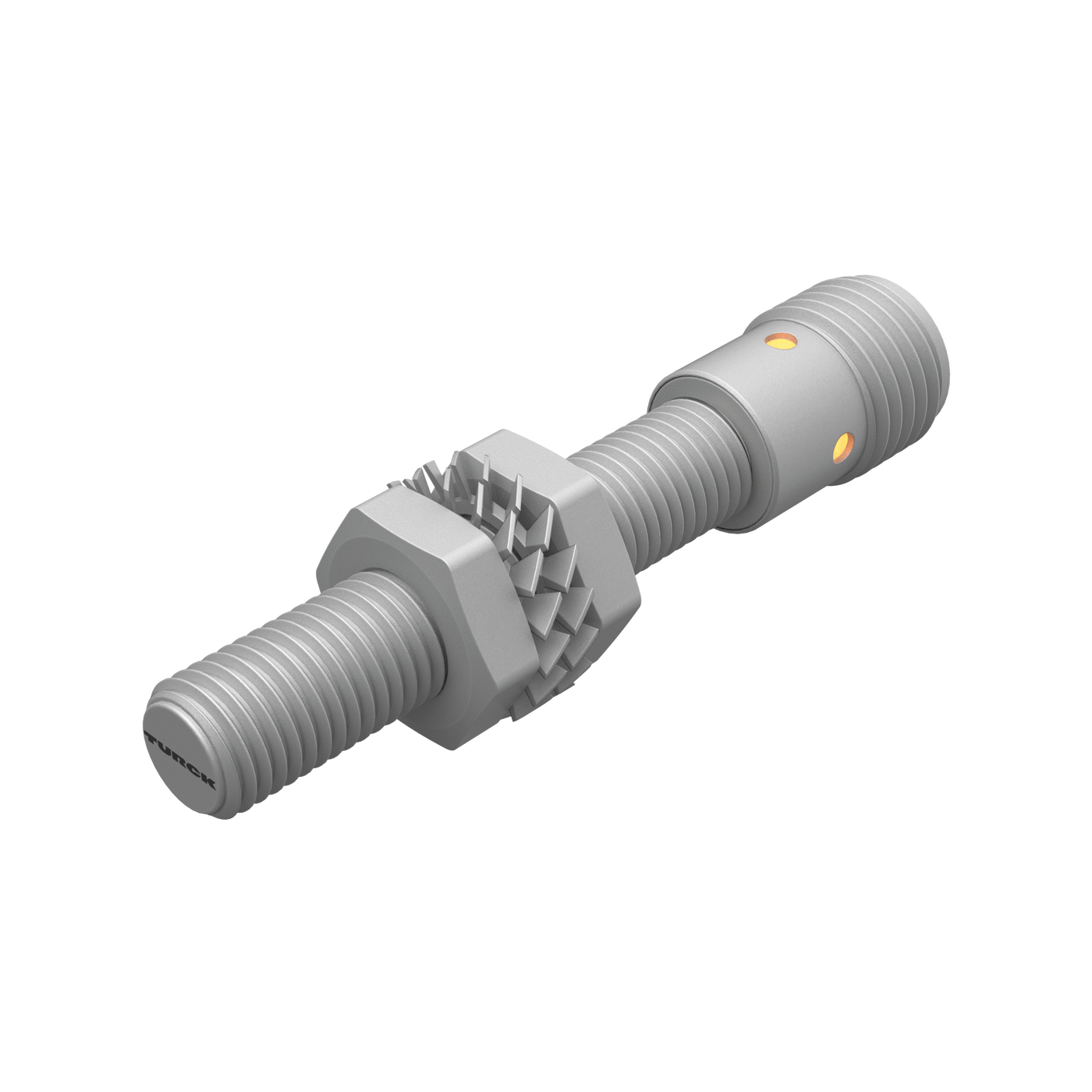

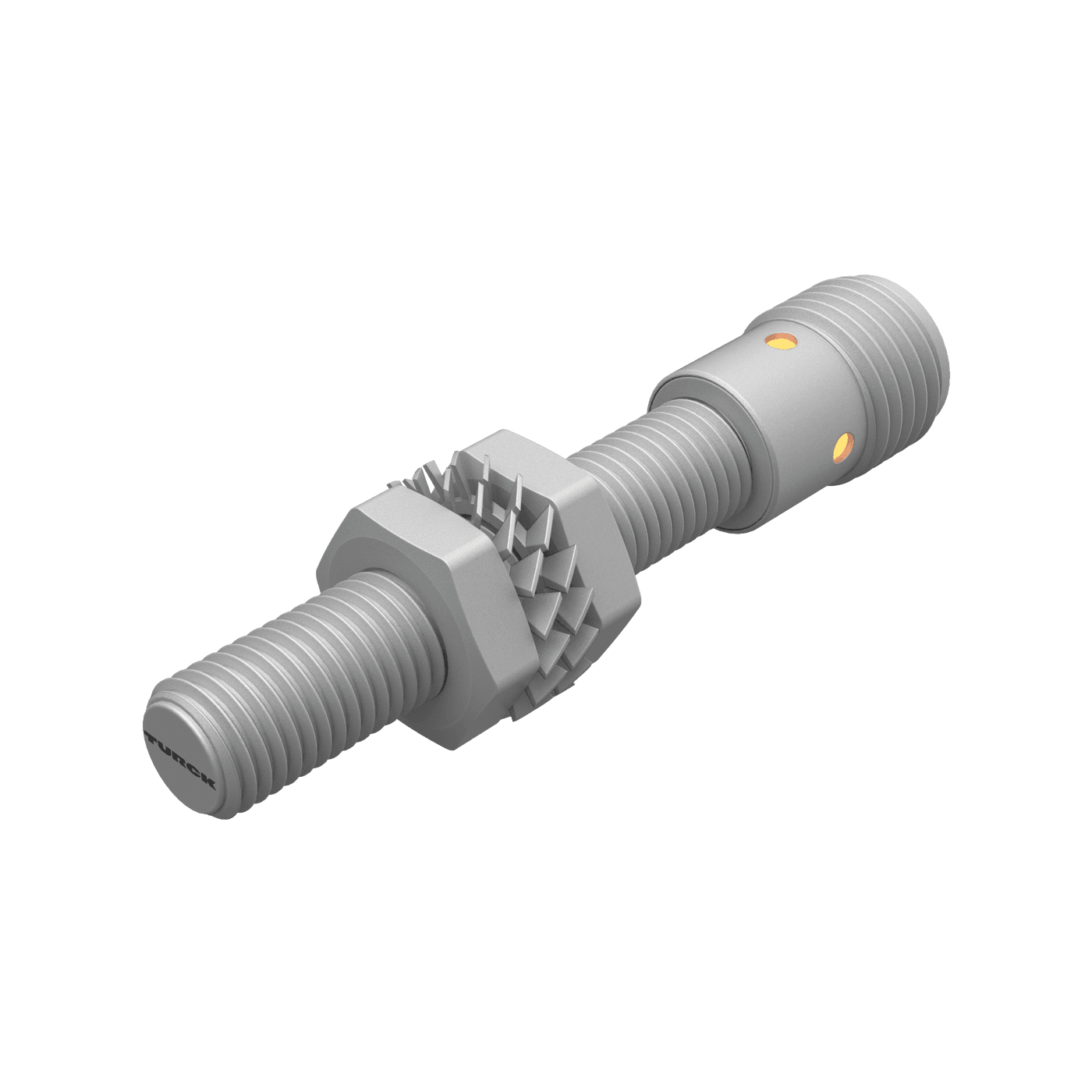

Inductive Sensor

BI1.5U-EGT08-AP6X-H1341

Order ID no. 4600555

Protection class: IP68
Switching element function: NO contact
Output function: PNP
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless steel
Housing quality: 1.4427 SO
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 1.5
Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated

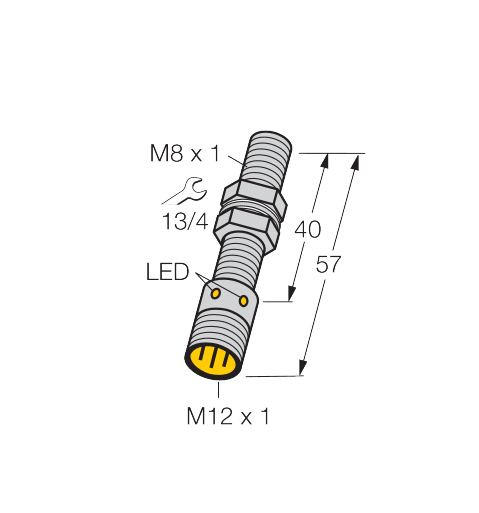

Dimensions: 8 mm x 57 mm
Quality active face: PA12-GF20
Switching frequency (kHz): 2
