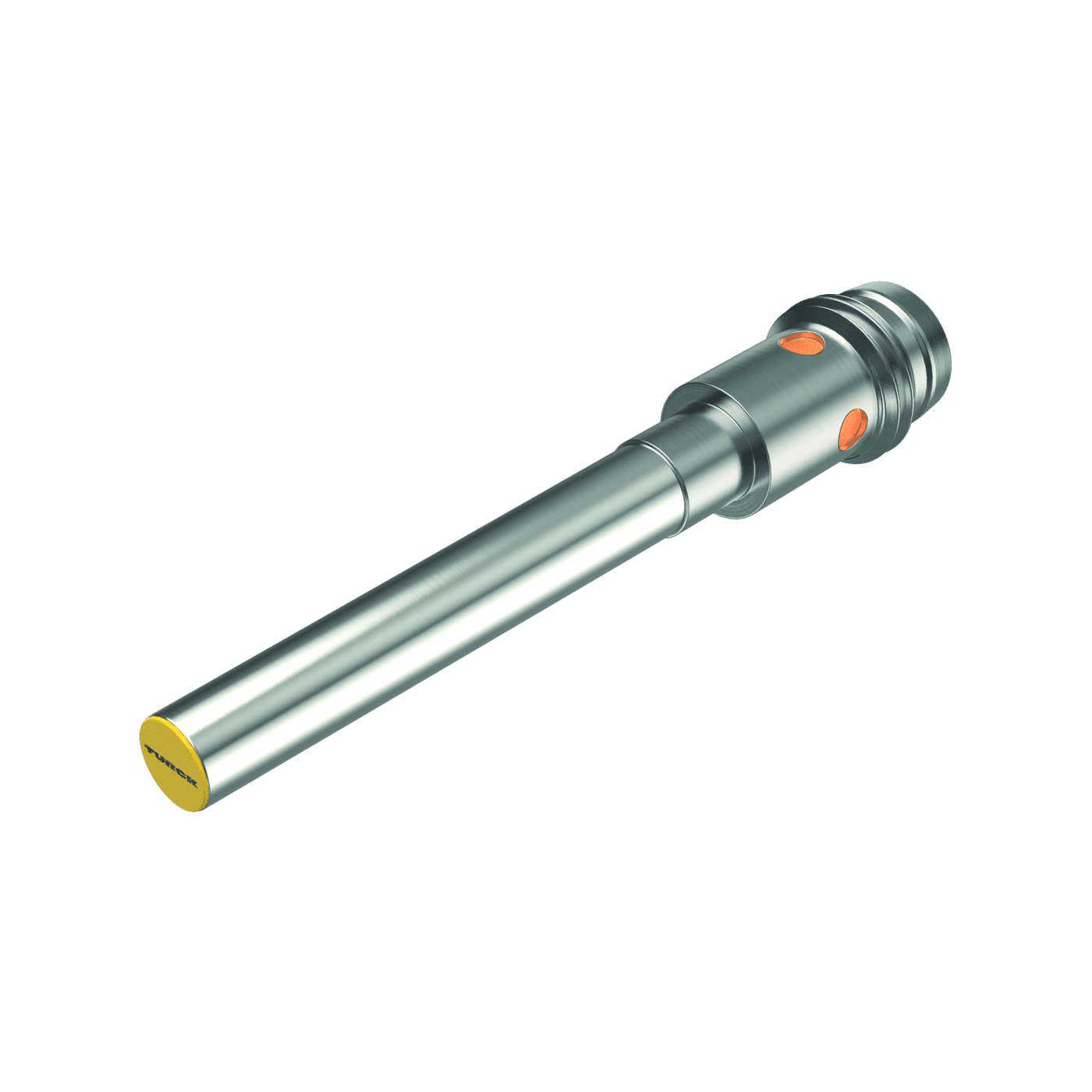

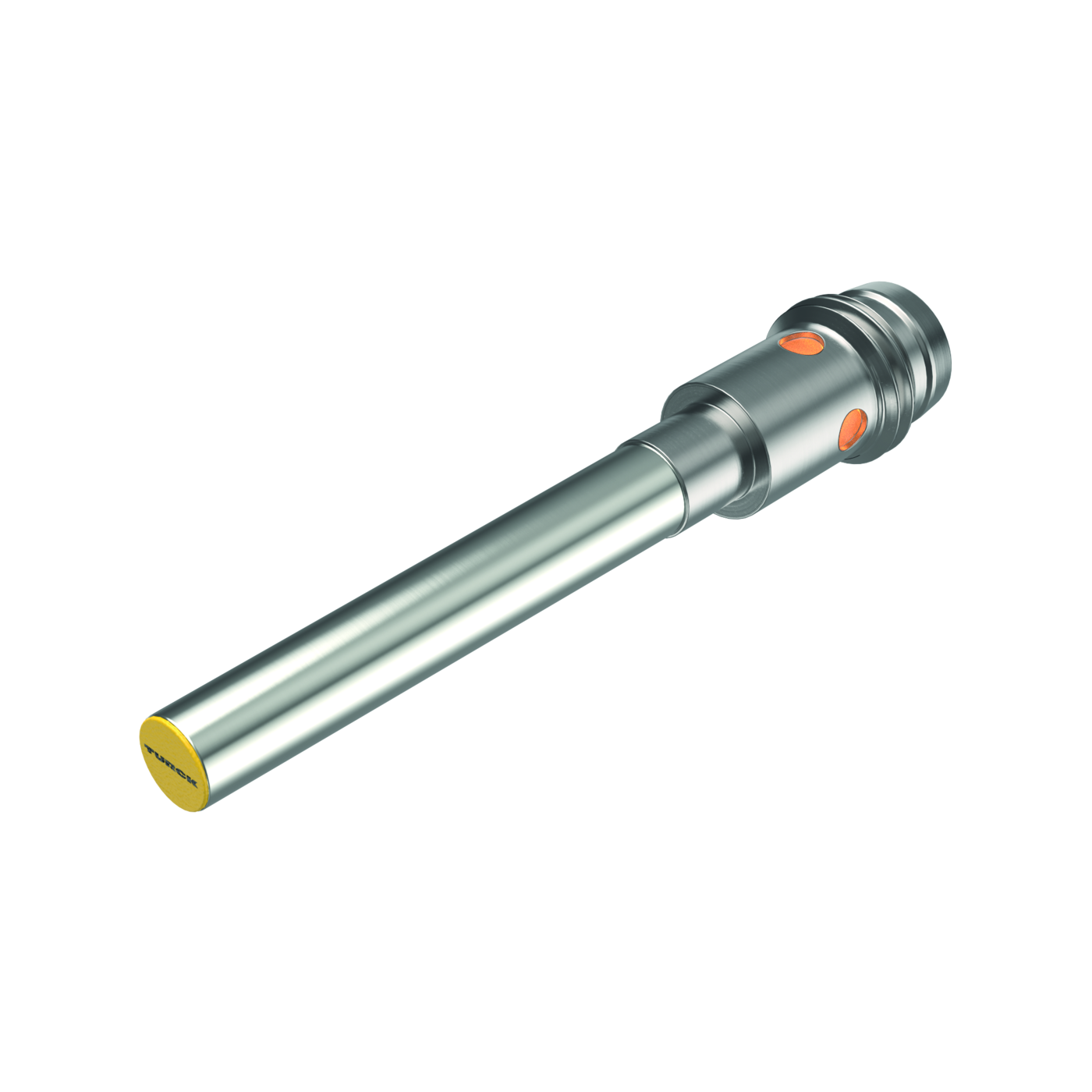

Inductive Sensor
BI1U-EH04-AP6X-V1331
Order ID no. 4602113
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Smooth barrel
Electrical connection
Connector
Connector type
M8 x 1
Housing material
Stainless steel
Housing quality
1.4427 SO
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
1
Special features
uprox3, Resistant to magnetic fields, Factor 1

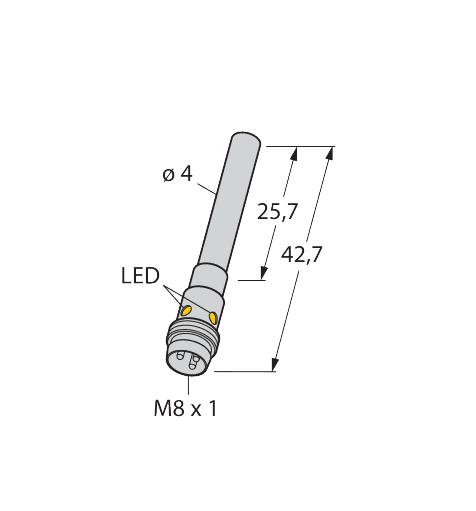

Dimensions
4 mm x 42,7 mm
Quality active face
PA12
Switching frequency (kHz)
2
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
1
In Stock
Price Group
E2
List Price
€98.80
