Inductive Sensor
NI3-EG08-AP6X-V1131
Order ID no. 4602750
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Connector
Connector type
M8 x 1
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
3

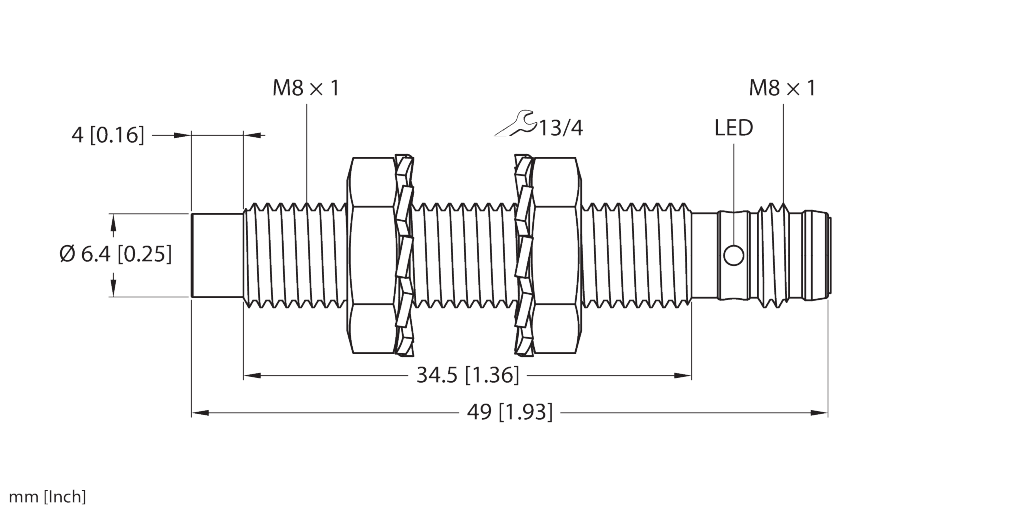

Dimensions
8 mm x 49 mm
Quality active face
PBT
Switching frequency (kHz)
3
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
3
home
Turck-Shop
Products
Sensors
Inductive Sensors
NI3-EG08-AP6X-V1131
In Stock
Price Group
E1
List Price
€88.90
Item Total
€88.90
