Inductive Sensor
BI1-EG05-AN6X-V1331
Order ID no. 4608740
In Stock
Price Group
E1
List Price
€93.60
Item Total
€93.60
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Inductive Sensors
BI1-EG05-AN6X-V1331
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Design
Threaded barrel
Electrical connection
Connector
Connector type
M8 x 1
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
1

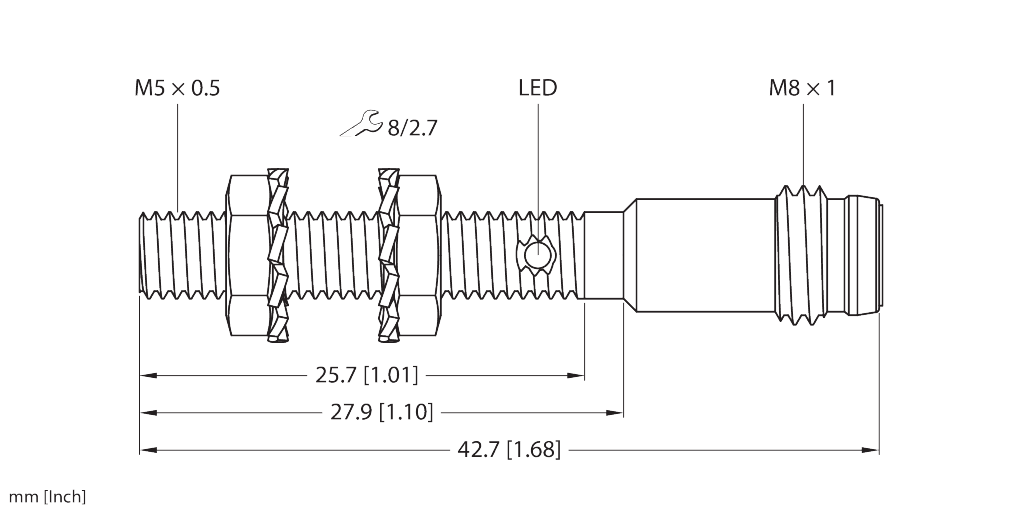

Dimensions
5 mm x 42,7 mm
Quality active face
PA6.6
Switching frequency (kHz)
3
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
1
