Inductive Sensor
BI5-G18SK-AP6X
Order ID no. 46420
In Stock
Price Group
E1
List Price
€95.50
Item Total
€95.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Inductive Sensors
BI5-G18SK-AP6X
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Terminal chamber
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
5

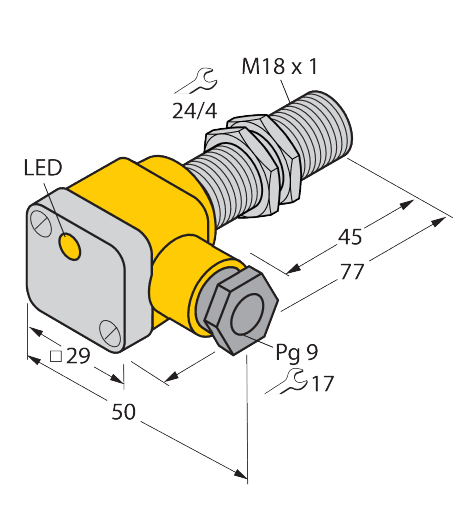

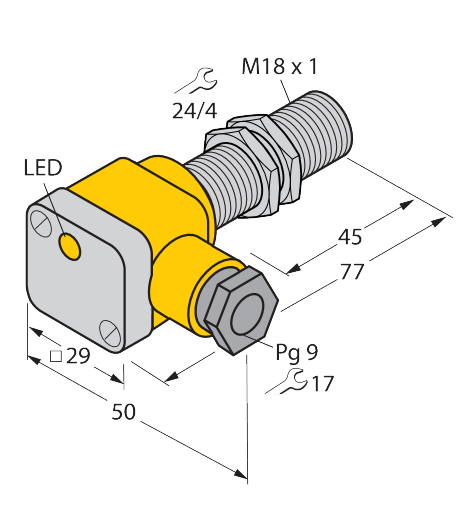

Dimensions
18 mm x 77 mm
Quality active face
PA12-GF30
Switching frequency (kHz)
0.5
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
5
