Inductive Sensor
NI22U-Q40-AP6X2-H1141
Order ID no. 4690229
In Stock
Price Group
E2
List Price
€88.90
Item Total
€88.90
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Inductive Sensors
NI22U-Q40-AP6X2-H1141
Technical Data
Downloads
Protection class
IP68
Switching element function
NO contact
Output function
PNP
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
0
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
22
Special features
uprox+, Factor 1, Resistant to magnetic fields

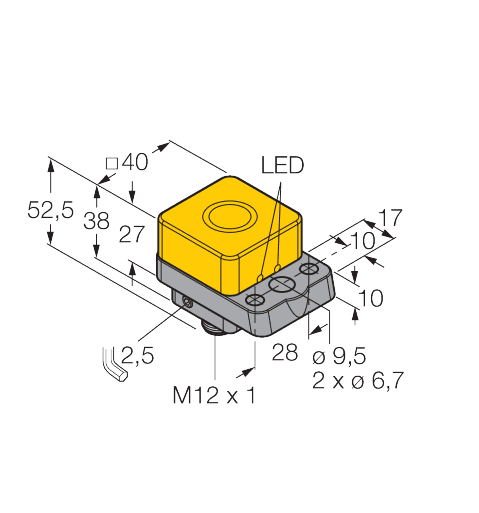

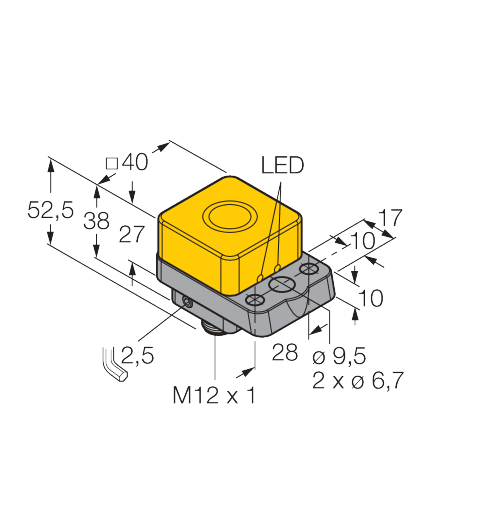

Dimensions
67 mm x 40 mm x 52,5 mm
Quality active face
PBT-GF30-V0
Switching frequency (kHz)
0.25
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
22
