WIM160-UNTL-IOL-0.3-RS4 | TURCK - Your Global Automation Partner

WIM160-UNTL-IOL-0.3-RS4

WIM160-UNTL-IOL-0.3-RS4

Thumbnail for WIM160-UNTL-IOL-0.3-RS4

Thumbnail for WIM160-UNTL-IOL-0.3-RS4

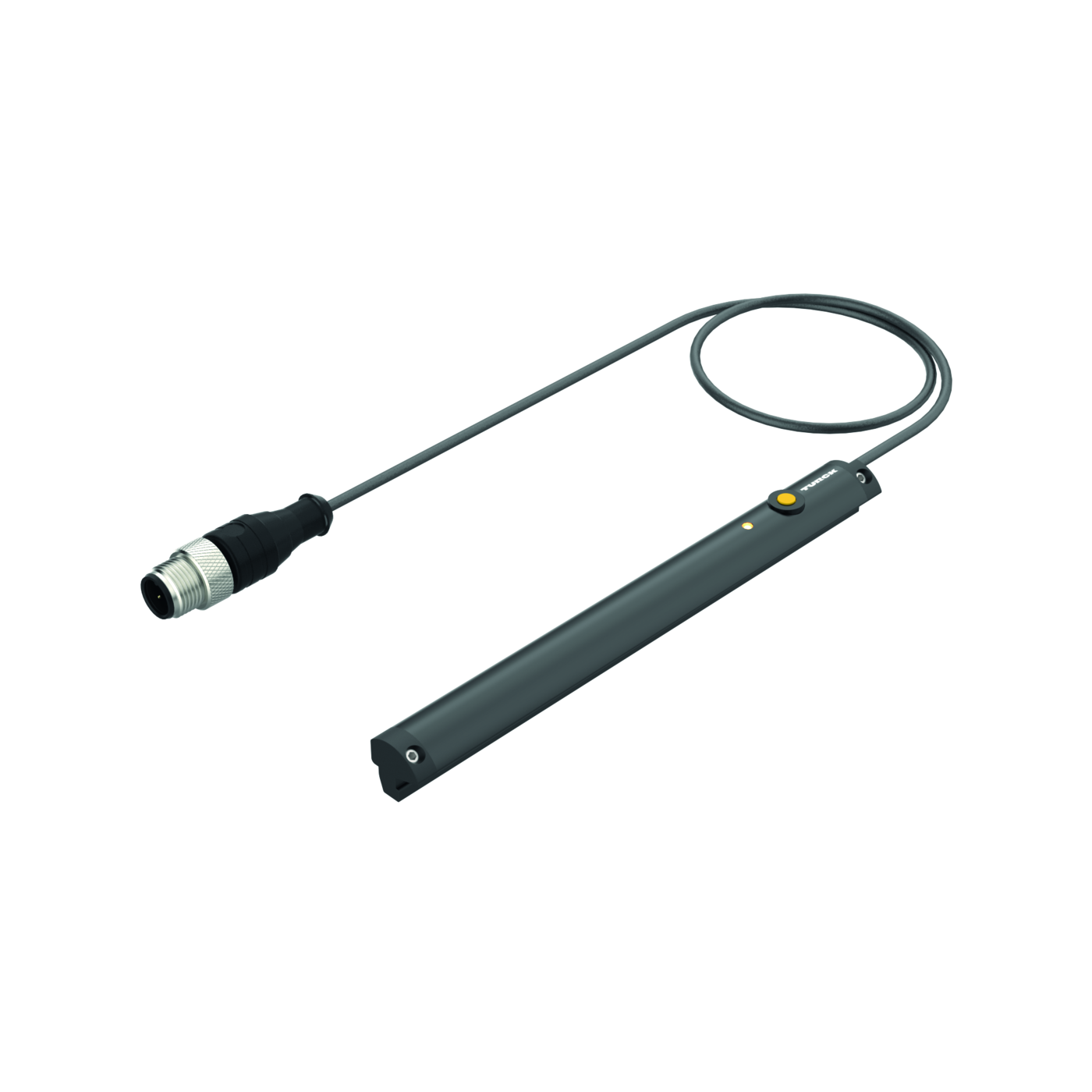

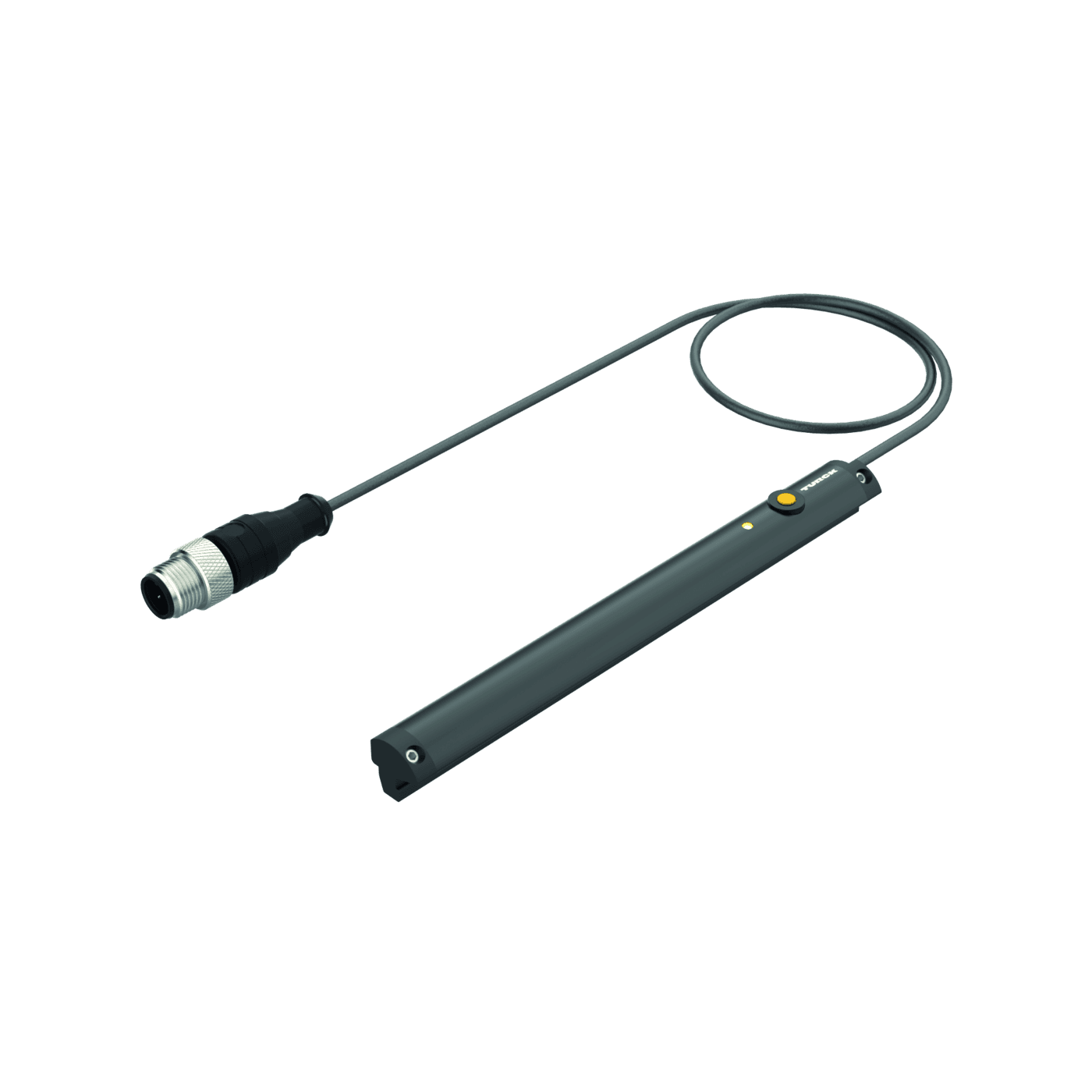

Magnetic Inductive Linear Position Sensor

WIM160-UNTL-IOL-0.3-RS4

Order ID no. 100034310

homeHome
Loading...

Protection class: IP67
Cable length (m): 0.3
Cable color: Black
Design: Rectangular
Communication protocol: IO-Link
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PA66-GF25
Ambient temperature min. (°C): -20
Ambient temperature max. (°C): 70
Measuring principle: Magnetic
Operating voltage: DC
Measuring range (mm): 160
Measuring range: 160…0.0 mm
Cylindrical design: T-groove cylinder

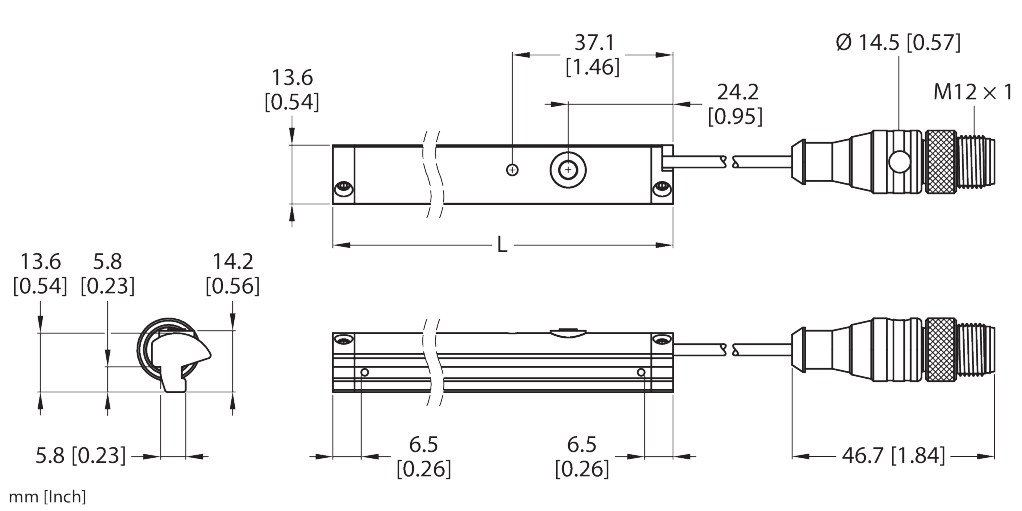

Dimensions: 173 mm x 13,6 mm x 14,2 mm

Key Features

Communication protocol: IO-Link
Electrical connection: Cable with connector
Cylindrical design: T-groove cylinder

In Stock
Price Group	E1
List Price	€297.00
