Magnetic Field Sensor

BIM-IKM-AZ3X2-B3131

Order ID no. 13471

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Electrical connection: Connector
Connector type: 1/2″
Design: Rectangular
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove

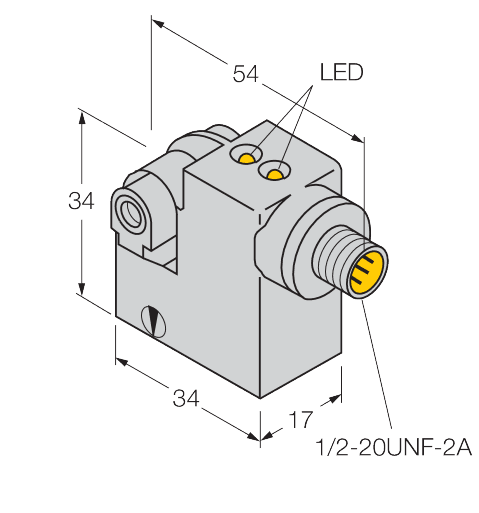

Dimensions (L x W x H): 34 mm x 17 mm x 34 mm
Housing material: Metal
Housing quality: GD-Zn
Operating voltage: AC
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
Switching frequency (kHz): 0.02
