NIMFE-EM12/4.6L88-UN6X-H1141/S1182

NIMFE-EM12/4.6L88-UN6X-H1141/S1182

Thumbnail for NIMFE-EM12/4.6L88-UN6X-H1141/S1182

Thumbnail for NIMFE-EM12/4.6L88-UN6X-H1141/S1182

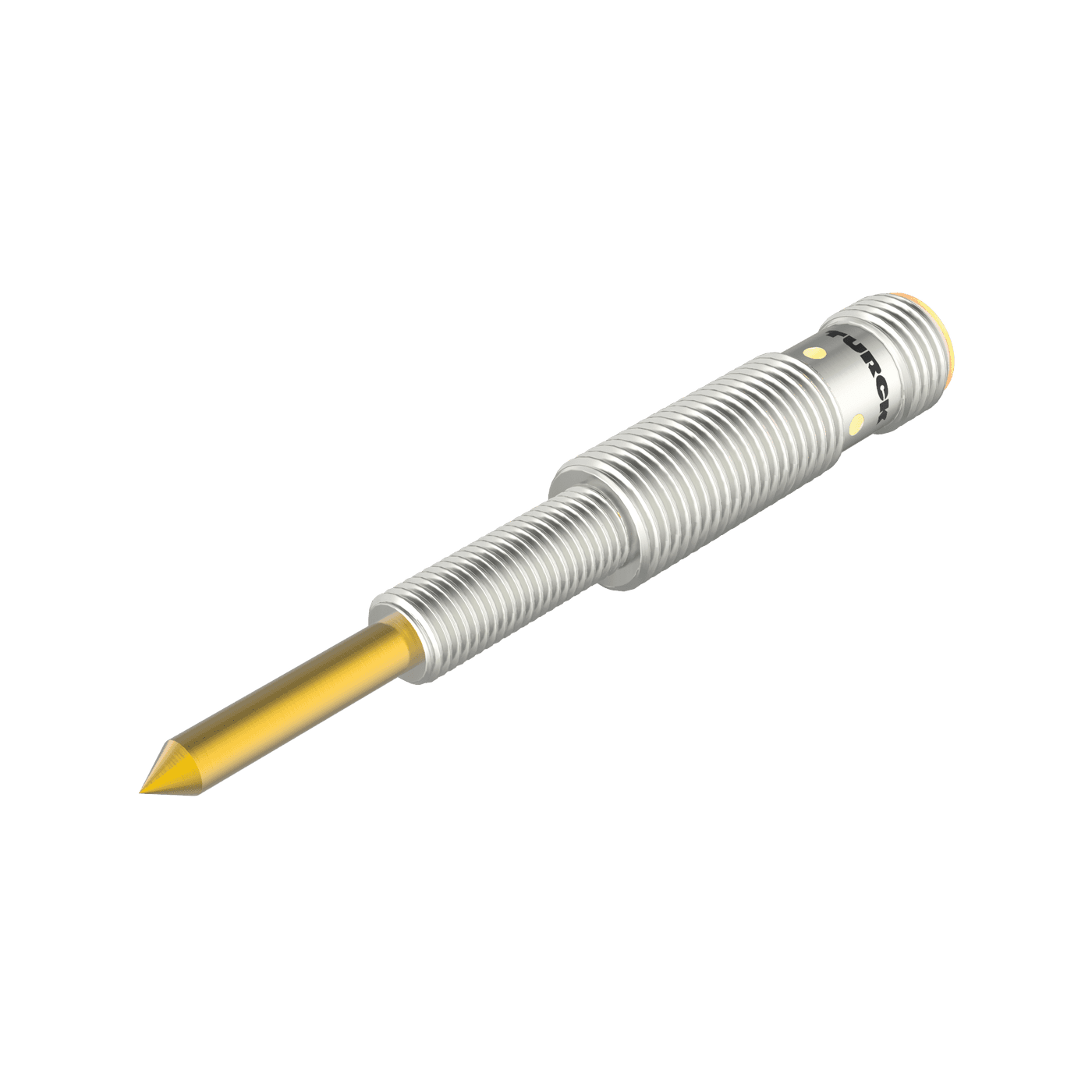

Magnetic Field Sensor

NIMFE-EM12/4.6L88-UN6X-H1141/S1182

Order ID no. 1600617

In Stock
Price Group	E1
List Price	€307.80

Item Total€307.80

Quantity

Contact Support

homeHome
Loading...

Protection class: IP67
Switching element function: Connection programmable
Output function: NPN
Design: Threaded barrel
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Construction size: M12 x 1
Special features: Weld nut sensor

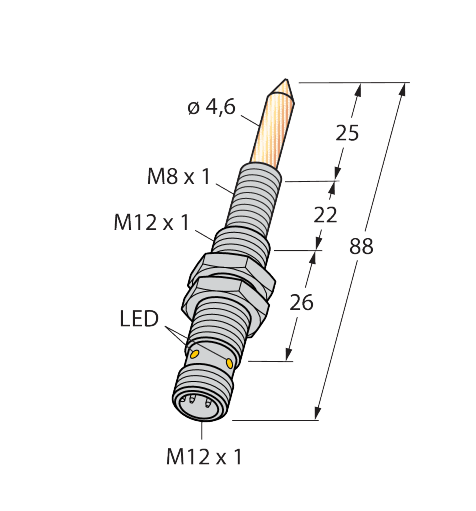

Dimensions: 12 mm x 88 mm
Quality active face: 1.4301 (AISI 304)

Key Features

Electrical connection: Connector
Output function: NPN
