Magnetic Field Sensor

BIM-NST-AP6X-0.3XOR-RS4/S34

Order ID no. 1644109

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Cable length (m): 0.3
Cable color: Orange
Design: Rectangular
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PA12-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC

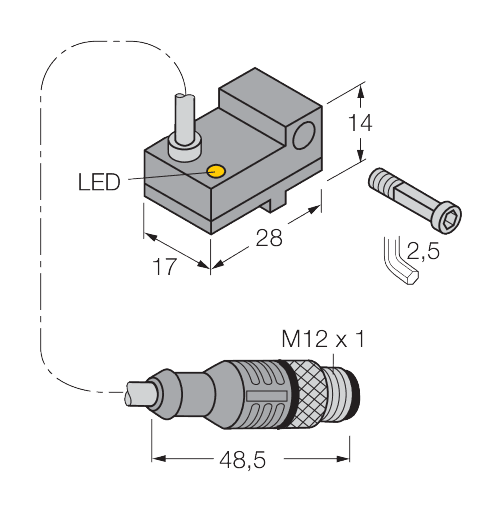

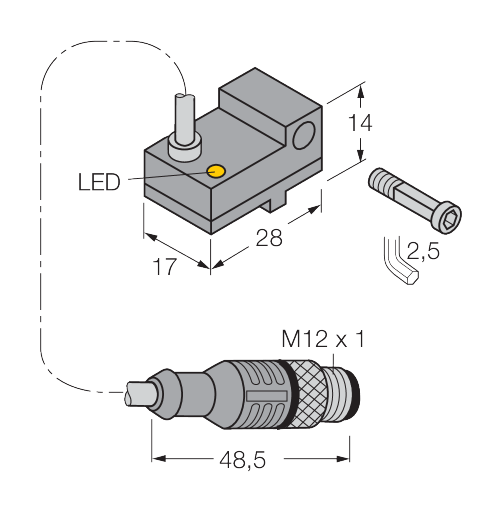

Construction size: 28 x 17 x 14 mm
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Special features: Resistant to magnetic fields
Dimensions: 28 mm x 17 mm x 14 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Electrical connection: Cable with connector
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
