Magnetic Field Sensor

BIM-IKT-AD4X

Order ID no. 44820

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 2
Electrical connection: Cable
Design: Rectangular
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove

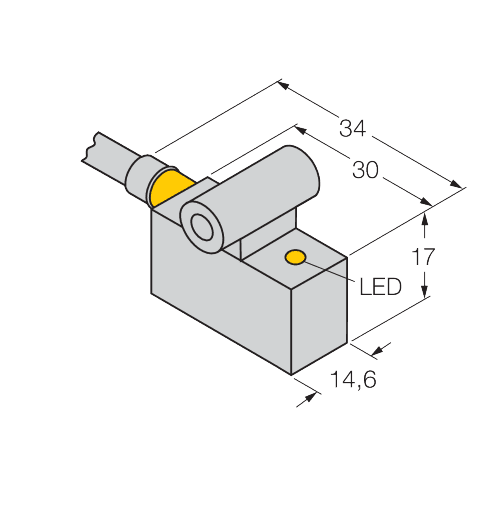

Dimensions (L x W x H): 30 mm x 14,6 mm x 17 mm
Housing material: Metal
Housing quality: GD-Zn
Operating voltage: DC
Output function: 2-wire
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
Switching frequency (kHz): 0.3
