Magnetic Field Sensor

BIM-IKT-AP6X-V1131

Order ID no. 46220

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Design: Rectangular
Electrical connection: Connector
Connector type: M8 x 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC

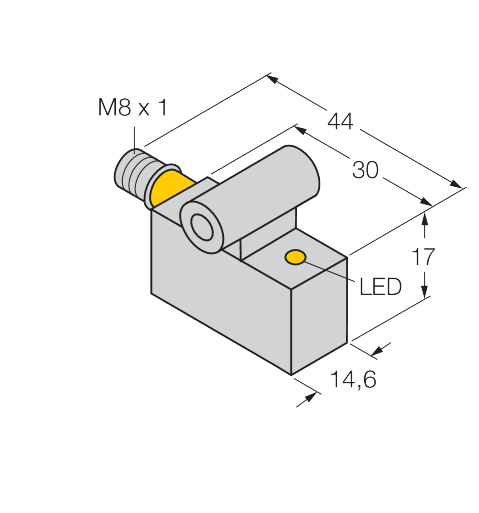

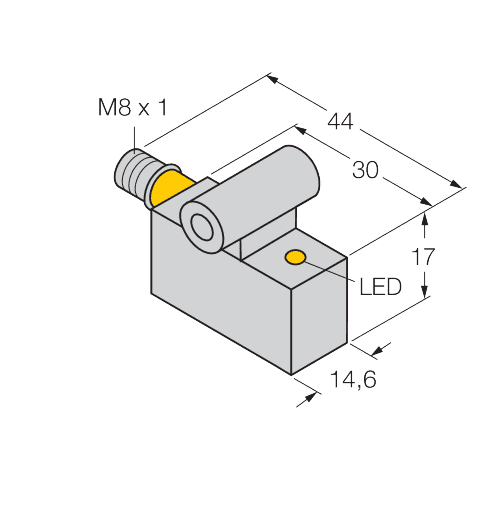

Construction size: 30 x 14.6 x 17 mm
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Dimensions: 30 mm x 14,6 mm x 17 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: PNP
