Magnetic Field Sensor

BIM-IKM-AP6X2-H1141/S34

Order ID no. 46272

Item Total€113.00

Quantity

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC

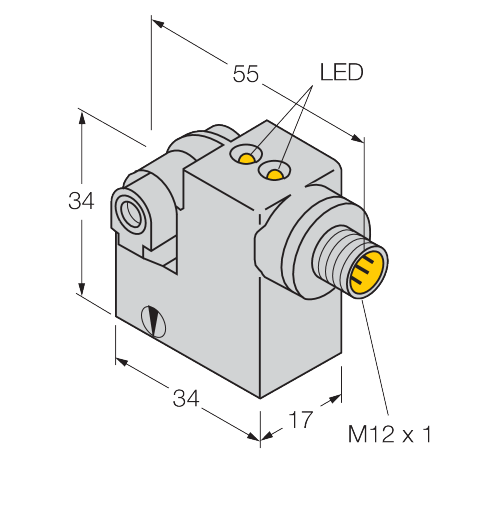

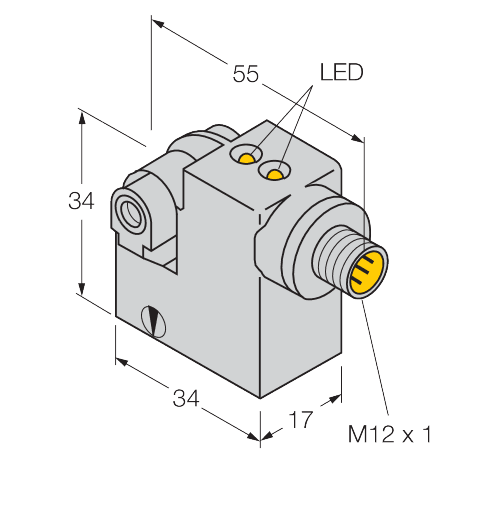

Construction size: 34 x 17 x 34 mm
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Special features: Resistant to magnetic fields
Dimensions: 34 mm x 17 mm x 34 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 0.02

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: PNP
