Magnetic Field Sensor

BIM-NST-AP6X-H1141/S34

Order ID no. 4685401

Special features: Resistant to magnetic fields
Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Electrical connection: Connector
Connector type: M12 x 1
Design: Rectangular
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder

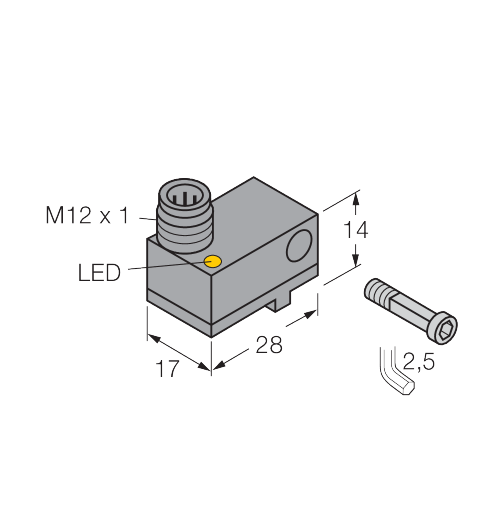

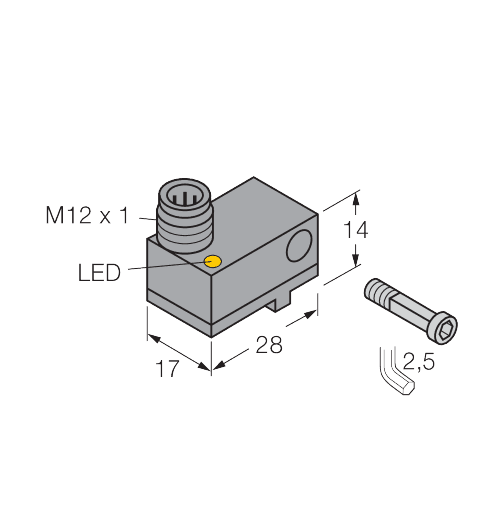

Dimensions (L x W x H): 28 mm x 17 mm x 14 mm
Housing material: Plastic
Housing quality: PA12-GF30
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
Switching frequency (kHz): 0.015
