Magnetic Field Sensor

BIM-NST-AP6X

Order ID no. 4685600

Item Total€62.00

Quantity

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Cable length (m): 2
Cable color: Gray
Design: Rectangular
Electrical connection: Cable
Housing material: Plastic
Housing quality: PA12-GF30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder

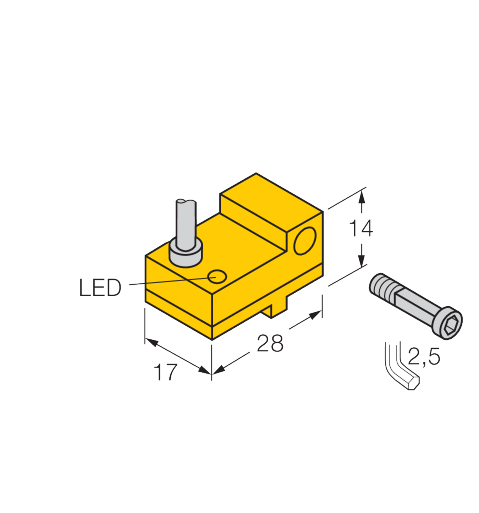

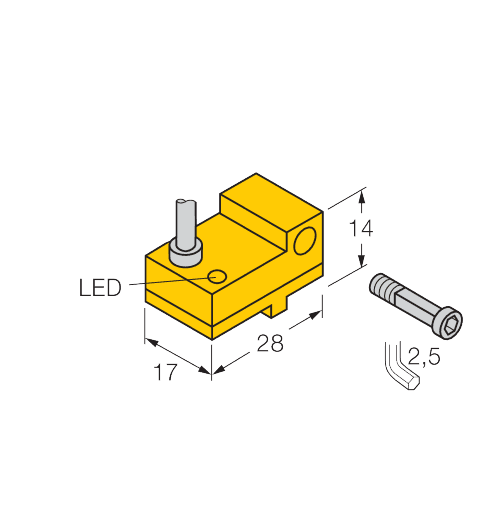

Dimensions: 28 mm x 17 mm x 14 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Electrical connection: Cable
Cylindrical design: T-groove cylinder, Dovetail cylinder, grooved, Profile cylinder
Output function: PNP
