Magnetic Field Sensor

BIM-UNT-AP6X2-H1141

Order ID no. 4685726

Protection class: IP68
Switching element function: NO contact
Output function: PNP
Design: Rectangular
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

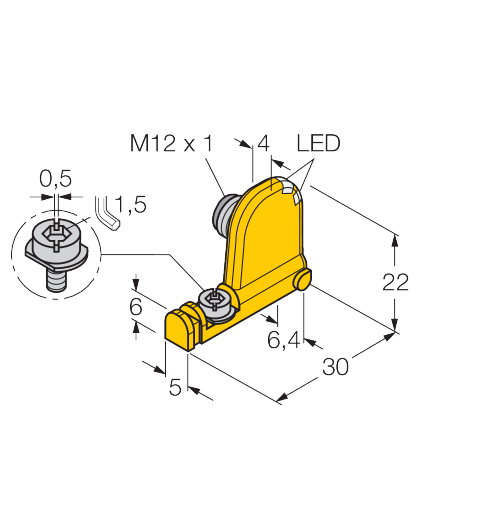

Dimensions: 30 mm x 5 mm x 22 mm
Quality active face: PP
Switching frequency (kHz): 1

Electrical connection: Connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
