Magnetic Field Sensor

BIM-UNTK-AP7X

Order ID no. 4686001

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 2
Electrical connection: Cable
Design: Rectangular
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

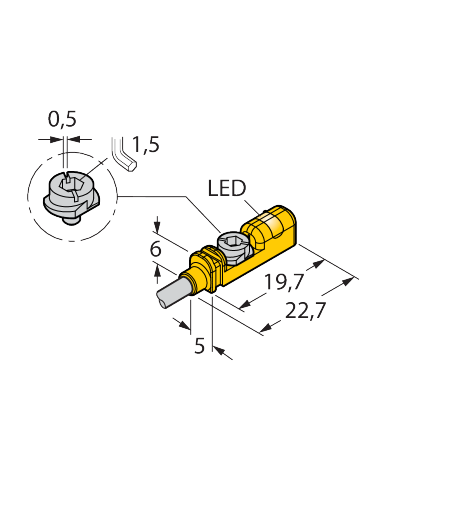

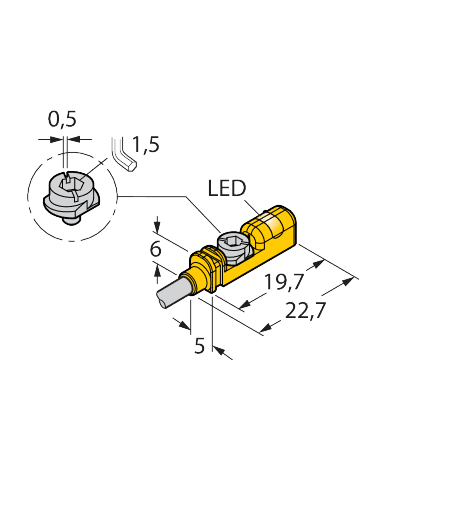

Dimensions (L x W x H): 19,7 mm x 5 mm x 6 mm
Housing material: Plastic
Housing quality: PP
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 0.3

Electrical connection: Cable
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
