Magnetic Field Sensor

BIM-UNTK-AP7X-0.3-RS4

Order ID no. 4686021

Protection class: IP68
Switching element function: NO contact
Output function: PNP
Cable length (m): 0.3
Cable color: Gray
Design: Rectangular
Electrical connection: Cable with connector
Connector type: M12 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

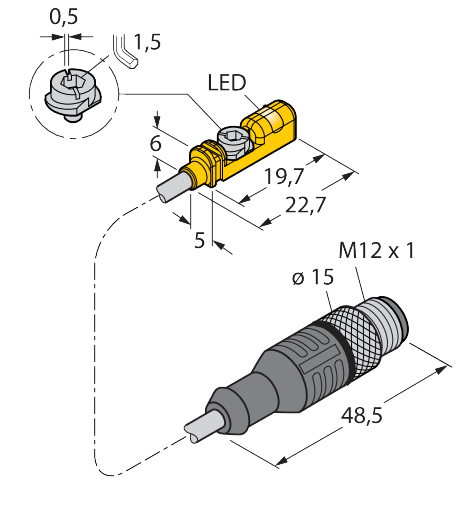

Dimensions: 19,7 mm x 5 mm x 6 mm
Quality active face: PP
Switching frequency (kHz): 0.3

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
