EA5R300PIXMODSRLCQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Measuring Light Screen
EA5R300PIXMODSRLCQ
Order ID no. 3027798
home
Home
Loading...
Technical Data
Downloads
Protection class
IP65
Switching element function
2 x NO contact
Output function
PNP/Analog output
Design
Rectangular
Communication protocol
Modbus RTU
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
AL
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Max. range (mm)
1500
Function
Light screen
Scan field (mm)
300
Optical resolution (mm)
5
Number of beams
60

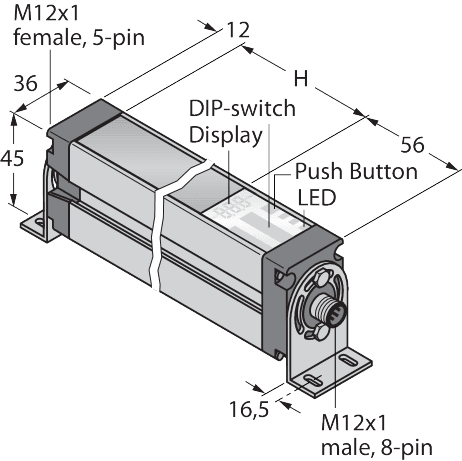

Dimensions
45,2 mm x 36 mm x 379 mm
Operating mode
Receiver
Key Features
Function
Light screen
Output function
PNP/Analog output
Max. range (mm)
1500
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
EA5R300PIXMODSRLCQ
In Stock
Price Group
F3
List Price
€1,064.00
Item Total
€1,064.00
