Photoelectric Sensor
MIAD9WQ
Order ID no. 3035233
In Stock
Price Group
F3
List Price
€215.70
Item Total
€215.70
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
MIAD9WQ
Technical Data
Downloads
Protection class
IP67
Switching element function
Light operation
Output function
NAMUR
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
Thermoplastic material
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Max. range (mm)
75
Function
Proximity switch
Light type
IR
Special features
Encapsulated

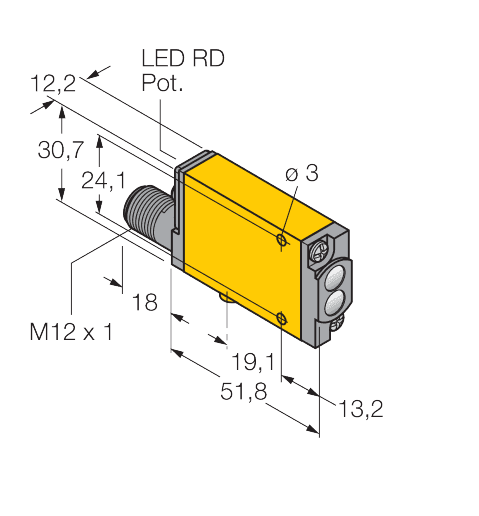

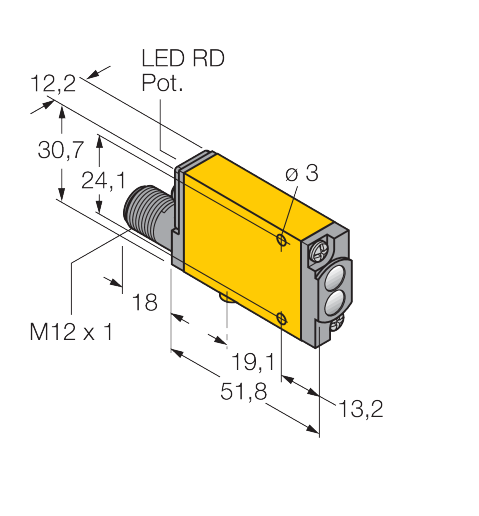

Dimensions
69,8 mm x 12,3 mm x 30,7 mm
Operating mode
Divergent
Setting option
Potentiometer
Wavelength (nm)
880
Key Features
Light type
IR
Function
Proximity switch
Output function
NAMUR
Max. range (mm)
75
