Photoelectric Sensor
Q45BB6LPQ5
Order ID no. 3038666
In Stock
Price Group
F3
List Price
€189.40
Item Total
€189.40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
Q45BB6LPQ5
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
PNP/NPN
Design
Rectangular
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
Thermoplastic material
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Max. range (mm)
6000
Function
Retroreflective Sensor
Light type
Red
Construction size
53.3 x 12.3 x 30.7 mm
Special features
keep/defer

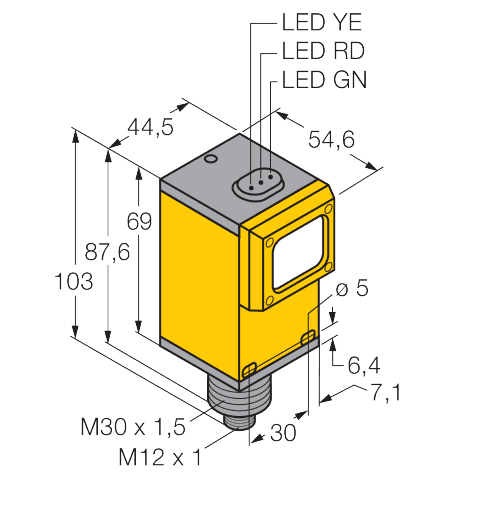

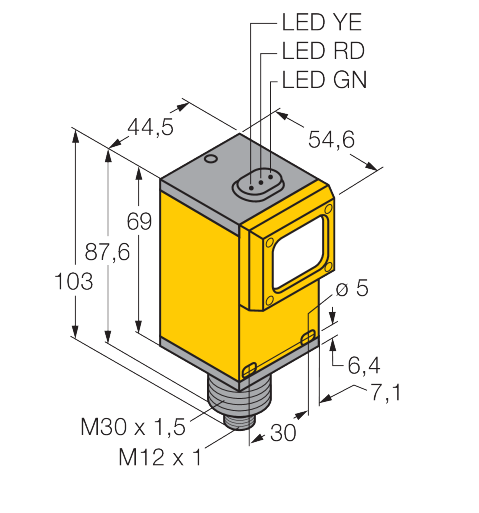

Dimensions
30 mm x 53,3 mm x 12,3 mm x 30,7 mm
Operating mode
Polarized
Setting option
Potentiometer
Wavelength (nm)
680
Key Features
Light type
Red
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
6000
