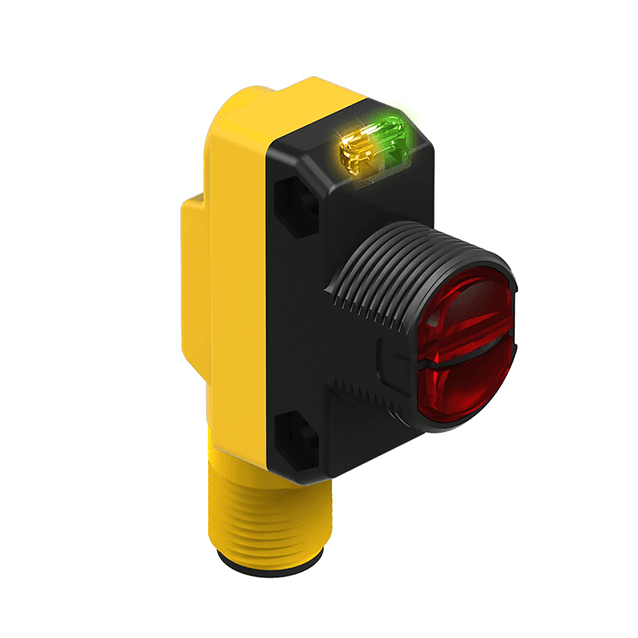

Photoelectric Sensor
QS18VP6CV15Q8
Order ID no. 3066456
In Stock
Price Group
F3
List Price
€106.30
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
QS18VP6CV15Q8
Technical Data
Downloads
Protection class
IP67
Switching element function
NO/NC
Output function
PNP
Design
Rectangular with thread
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
70
Max. range (mm)
16
Function
Proximity switch
Focal distance (mm)
16
Light type
Red

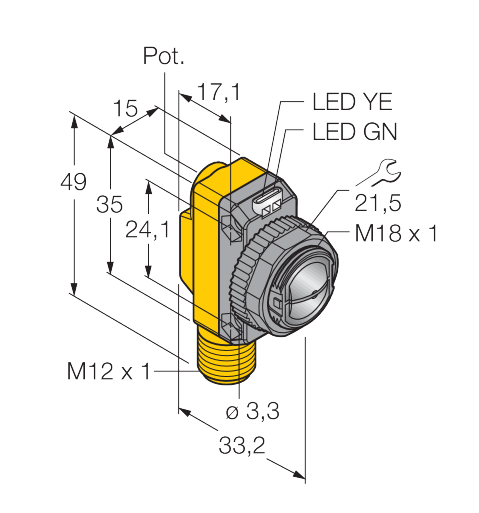

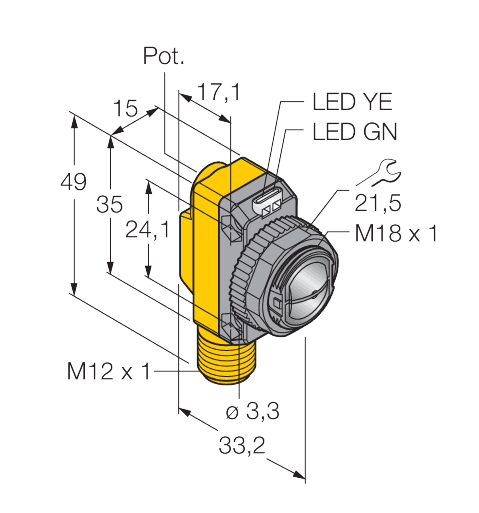

Dimensions
18 mm x 33,2 mm x 15 mm x 35 mm
Operating mode
Convergent
Setting option
Potentiometer
Wavelength (nm)
630
Key Features
Light type
Red
Function
Proximity switch
Output function
PNP
Max. range (mm)
16
