Photoelectric Sensor
QS18EN6WQ5
Order ID no. 3069215
In Stock
Price Group
F3
List Price
€122.80
Item Total
€122.80
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Cable length (m)
0.15
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
70
Max. range (mm)
300
Function
Proximity switch
Light type
IR
Construction size
21.1 x 15 x 35 mm
Special features
keep/defer

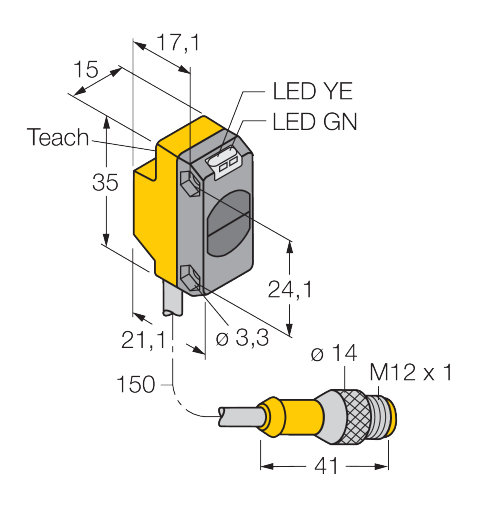

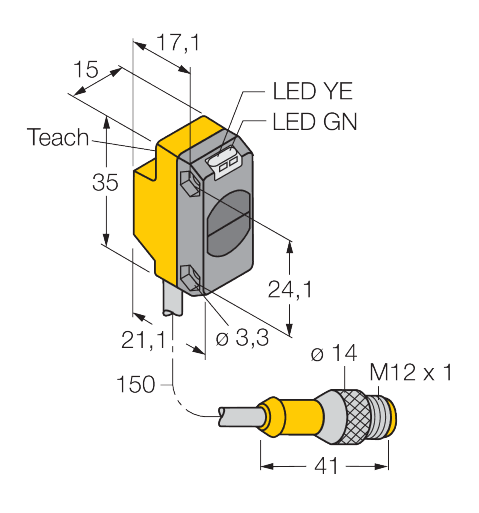

Dimensions
21,1 mm x 15 mm x 35 mm
Operating mode
Divergent
Setting option
Push Button, Remote Teach
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Output function
NPN
Max. range (mm)
300
