Photoelectric Sensor
SMU315WQDP
Order ID no. 3073026
In Stock
Price Group
F3
List Price
€265.10
Item Total
€265.10
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
SMU315WQDP
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
1/2″
Design
Rectangular

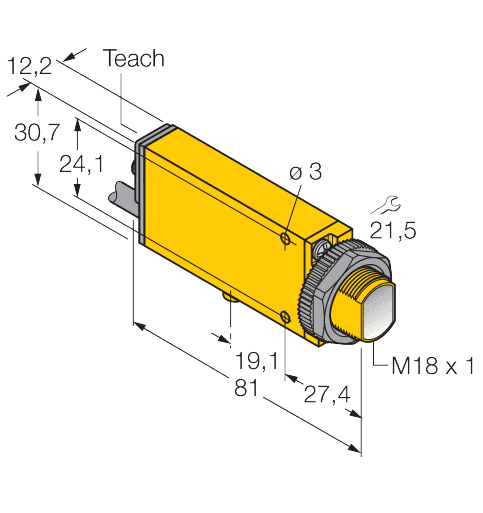

Dimensions (L x W x H)
81 mm x 12,3 mm x 30,7 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
IR
Function
Proximity switch
Operating mode
Divergent
Output function
Relay output
Protection class
IP67
Max. range (mm)
130
Setting option
Potentiometer
Switching element function
NO/NC
Wavelength (nm)
880
Key Features
Light type
IR
Function
Proximity switch
Output function
Relay output
Max. range (mm)
130
