Photoelectric Sensor
SLM80B6QPMA
Order ID no. 3075032
In Stock
Price Group
F3
List Price
€239.40
Item Total
€239.40
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
SLM80B6QPMA
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
M12 × 1
Design
Fork

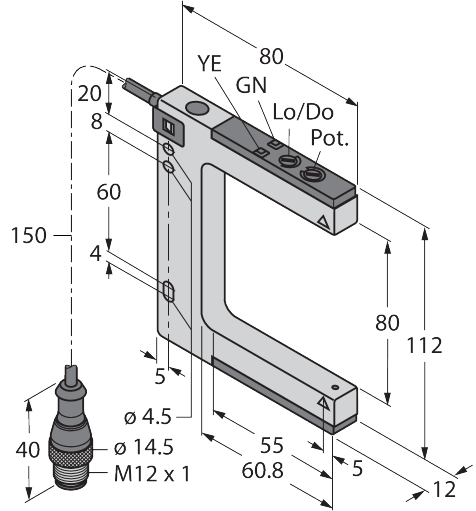

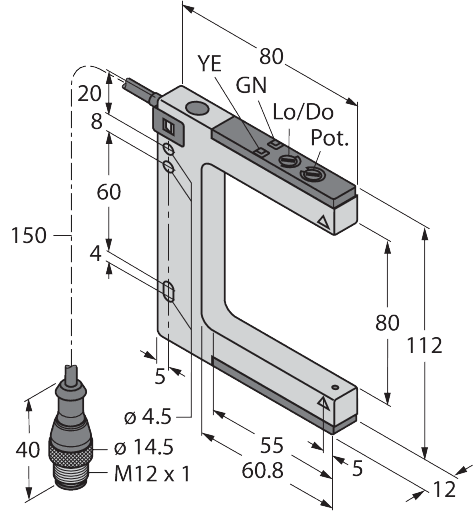

Dimensions (L x W x H)
80 mm x 12 mm x 112 mm
Housing material
Metal
Housing quality
Zinc Die-Cast with Nickel-Plating
Light type
Red
Function
Slot sensor
Operating mode
Transmitter/receiver pair
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
80
Setting option
Potentiometer
Switching element function
NO contact
Wavelength (nm)
680
Key Features
Light type
Red
Function
Slot sensor
Output function
PNP/NPN
Max. range (mm)
80
