Q4XTILAF500-Q8 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

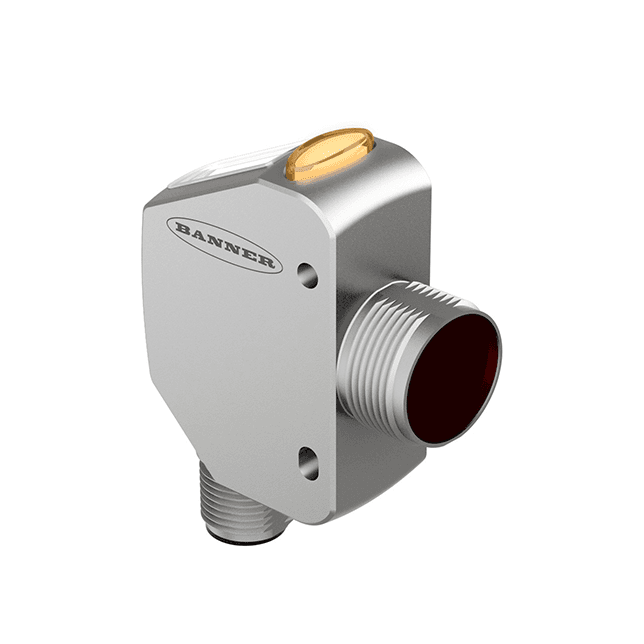

Photoelectric sensor Laser distance sensor (triangulation)
Q4XTILAF500-Q8
Order ID no. 3802751
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Connector type
M12 x 1
Design
Rectangular with thread

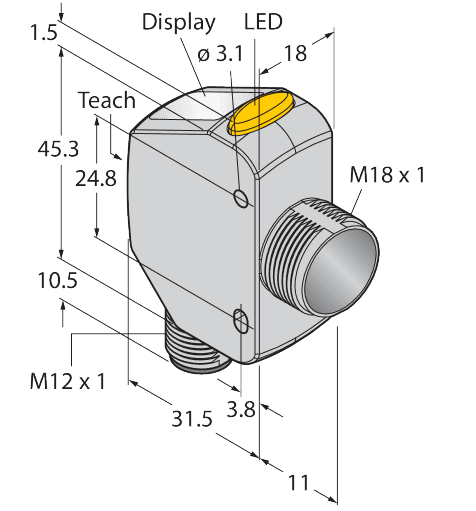

Dimensions (L x W x H)
43,5 mm x 18 mm x 57,5 mm
Display
4-digit 7-segment LED display
Electrical connection
Connector
Function
Proximity switch
Housing material
Metal
Housing quality
Stainless steel
Laser class
1
Light type
Red
Max. range (mm)
500
Operating mode
Background/foreground suppression
Optical resolution (mm)
1
Output function
Analog output
Protection class
IP67, IP68, IP69
Special features
Chemical-resistant, Resistant to chemicals, Wash down
Wavelength (nm)
655
Key Features
Light type
Red
Function
Proximity switch
Output function
Analog output
Max. range (mm)
500
In Stock
Price Group
F3
List Price
678,00 €
Item Total
678,00 €
Quantity
−
+
