Photoelectric sensor Reflex Light Grid
TTR600BMSB6B-2.0FL-CTR
Order ID no. 3809793
In Stock
Price Group
F3
List Price
271,00 €
Item Total
271,00 €
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Products
Sensors
Photoelectric Sensors
TTR600BMSB6B-2.0FL-CTR
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Cable length (m)
2
Cascadable
No
Connector type
Open end
Design
Rectangular

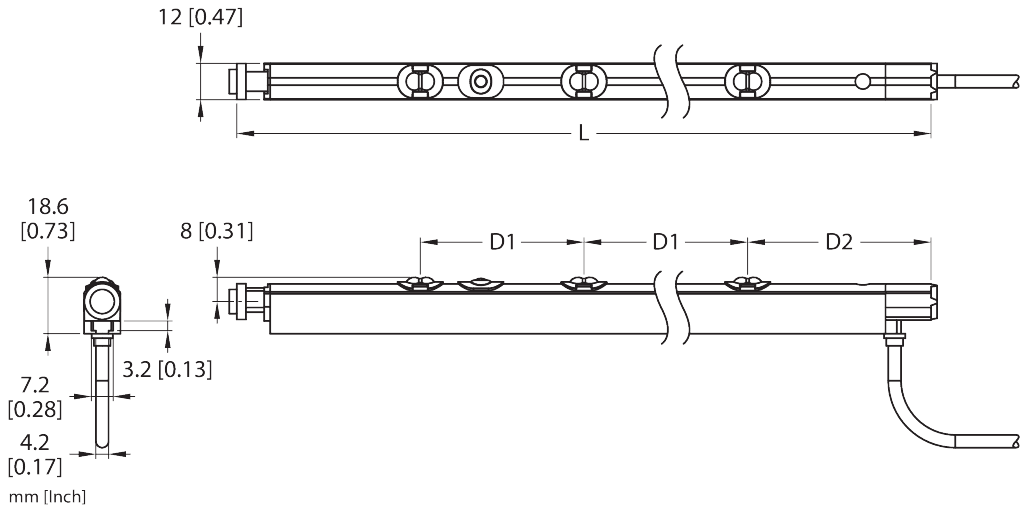

Dimensions (L x W x H)
600 mm x 12 mm x 18,6 mm
Electrical connection
Cable
Function
Proximity switch
Housing material
Metal
Housing quality
AL
Light type
IR
Max. range (mm)
120
Number of beams
6
Operating mode
Diffuse
Optical resolution (mm)
93.1
Output function
PNP/NPN
Protection class
IP50
Switching element function
Connection programmable
Wavelength (nm)
940
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP/NPN
Max. range (mm)
120
