ZMX-3DE2500HF-Q7 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

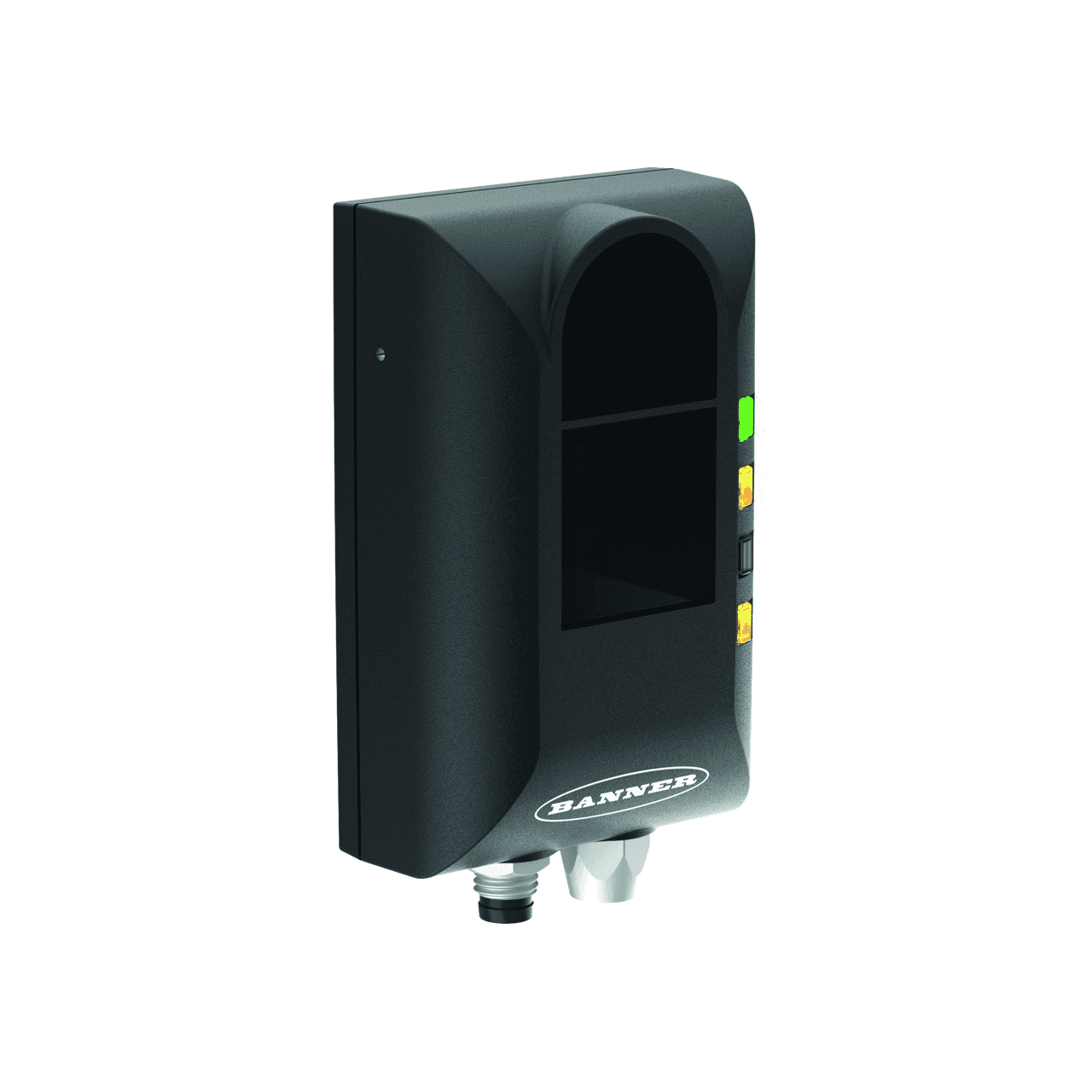

Photoelectric Sensor
ZMX-3DE2500HF-Q7
Order ID no. 3813105
home
Home
Loading...
Technical Data
Downloads
Special features
Filling level detection
Ambient temperature max. (°C)
40
Ambient temperature min. (°C)
-10
Electrical connection
Connector
Connector type
M12 x 1
Design
Rectangular

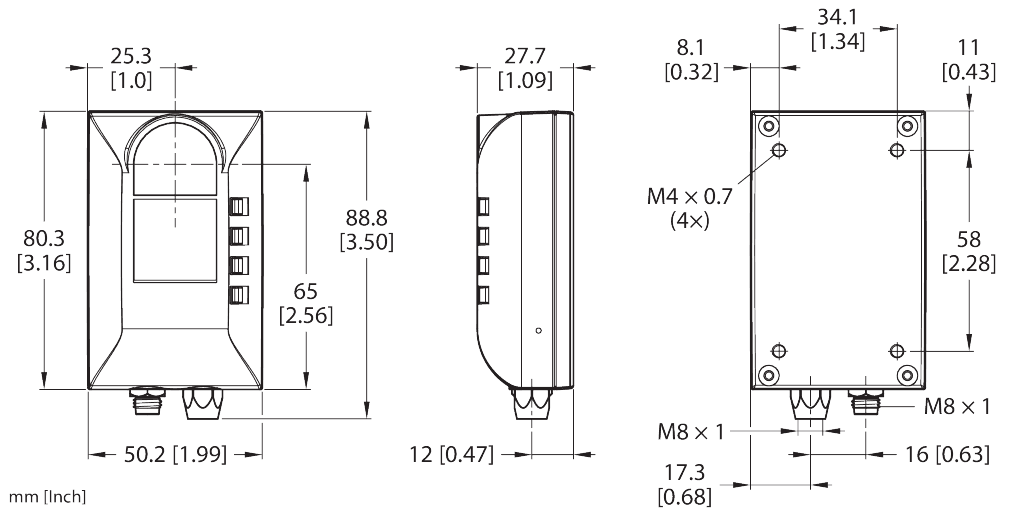

Dimensions (L x W x H)
27,7 mm x 50,2 mm x 80,3 mm
Display
None
Housing material
Metal/plastic
Housing quality
AL, PC
Light type
IR
Function
3D - ToF
Operating mode
Time-of-Flight
Output function
PNP/NPN, Frequency
Protection class
IP65
Max. range (mm)
2500
Switching element function
NO/NC
Wavelength (nm)
850
Key Features
Light type
IR
Function
3D - ToF
Output function
PNP/NPN, Frequency
Max. range (mm)
2500
In Stock
Price Group
F3
List Price
€1,672.00
